DV
Voltage transducers for Industrial and Traction - for medium and high voltage measurements from 1200 to 4200 VRMS with an unique compact design, excellent overall accuracy and high insulation voltage

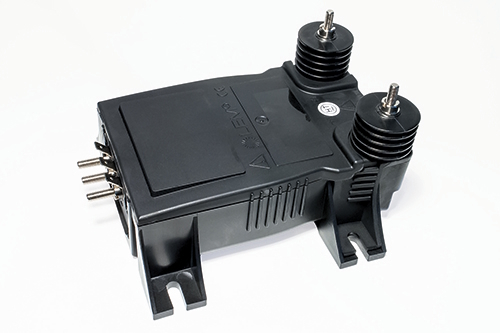

DV 4200/SP8
Bipolar and insulated measurement up to 4200 V, +/- 50 mA current output, Input on M5 studs on the top and output on M5 studs + Faston + safety nuts, Footprint compatible with CV4 and LV 200-AW/2 series.
- Series
-
DV
- Measurement
-
電圧センサ
- Nominal Value
-
4200 V
- Measuring Range
-
6000 V
- Second. Nominal Signal
-
電流
- Second. Nominal Signal Value
- 瞬時 50 mA
- Primary Signal
-
AC + DC
- Supply Voltage
-
外部DCバイポーラ
- Supply Voltage Range
- 15 - 24 V
- Accuracy
- 0.3 %
- Op. Temperature
- -40 °C / 85 °C
- 技術
-
絶縁デジタル技術
- Mounting
-
パネル
- アプリケーション
-
鉄道（車載）
