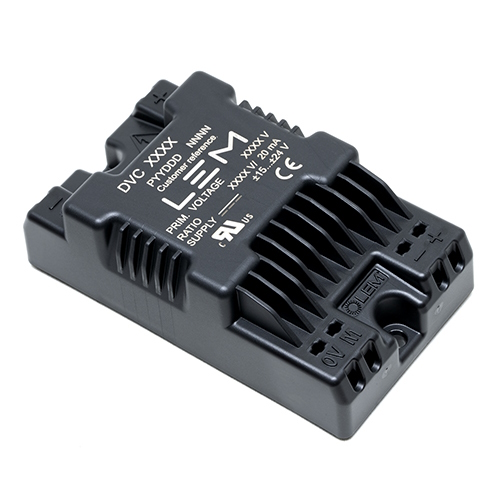

DVC
LEM makes the voltage measurement more compact, 131.6 cm3 total volume, Fully-isolated nominal measurement of 1000 V DC, AC or pulsed, Compact, light (57 g) and robust package, Panel mounting, Rail DIN mounting adaptor as an option, 4.2kV as insulation test voltage, Meets latest industrial standards as well as IRIS requirements for rail traction applications
Model details
DVC 1000
1000 VRMS nominal, Overall accuracy: +/- 1.7 % from -40°C to +85°C, 12 us response time, +/- 30 mA instantaneous current output @ +/- 1500 V peak, +/- 15 to +/- 24 volt power supply
- Series
-
DVC
- Measurement
-
電圧センサ
- Nominal Value
-
1000 V
- Measuring Range
-
1500 V
- Second. Nominal Signal
-
電流
- Second. Nominal Signal Value
- 瞬時 20 mA
- Primary Signal
-
AC + DC
- Supply Voltage
-
外部DCバイポーラ
- Supply Voltage Range
- 15 - 24 V
- Accuracy
- 1.7 %
- Op. Temperature
- -40 °C / 85 °C
- 技術
-
Isolation Amplifier
- Mounting
-
DIN レールパネル
- アプリケーション
-
ドライブ電源再生可能エネルギー鉄道(車載)溶接

FRONT
BACK
LEFT
RIGHT
