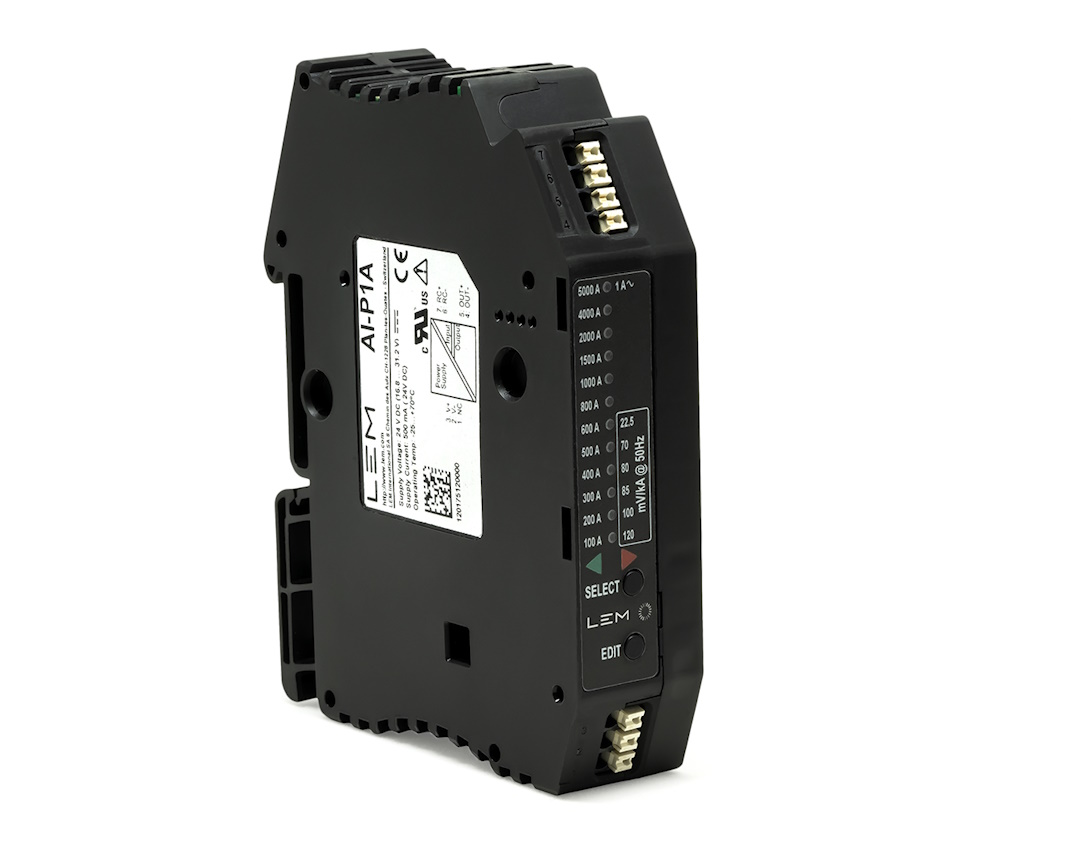

AI-P1A
The Rogowski coil integrator AI-P1A complements LEM’s flexible clip-around coil ART and ARU families to provide a 1 A output instantaneous signal to replace conventional current transformer. AI-P1A is DIN rail mounted.
型号细节
AI-P1A
6 selectable sensitivities depending on Rogowski coil: 22.5, 70, 80, 85, 100, 120 mV/kA at 50 Hz and delivering 1 A instantaneous output signals for 12 selectable In ranges: 100, 200, 300, 400, 500, 600, 800, 1000, 1500, 2000, 4000, 5000 A
- 系列
-
AI-P1A
- 测量类型
-
电流
- 额定值
-
100 A, 200 A, 300 A, 400 A, 500 A, 600 A, 800 A, 1000 A, 1500 A, 2000 A, 4000 A, 5000 A
- 测量范围
-
5000 A
- 副边输出信号
-
电流
- 副边输出信号值
- 瞬时 1000 mA
- 原边信号
-
AC
- 工作电压
-
外部供电 DC 单向
- 工作电压范围
- 16 - 31 V
- 精度
- 0.5 %
- 工作温度
- -25 °C / 70 °C
- 技术
-
Integrator
- 安装
-
导轨安装
- 应用
-
自动化Smart Grid
