HLSR-PW
The perfect fit for your design. Really cost effective.,4 ranges: 16 ARMS, 32 ARMS, 40 ARMS, 50 ARMS. ,Digital output: 2 wire CMOS or 2 wire RS422 Manchester or 2 wires LVDS Manchester. Compact Unique design for all the models. Only 3.87 cm2 as surface occupied on the PCB,Really flat: 12 mm height only! Creepage & clearance distances: 8 mm + CTI 600. Single supply +5 V. Through hole PCB mounting models. Operating temperature range: -40 to +105°C.
型号细节

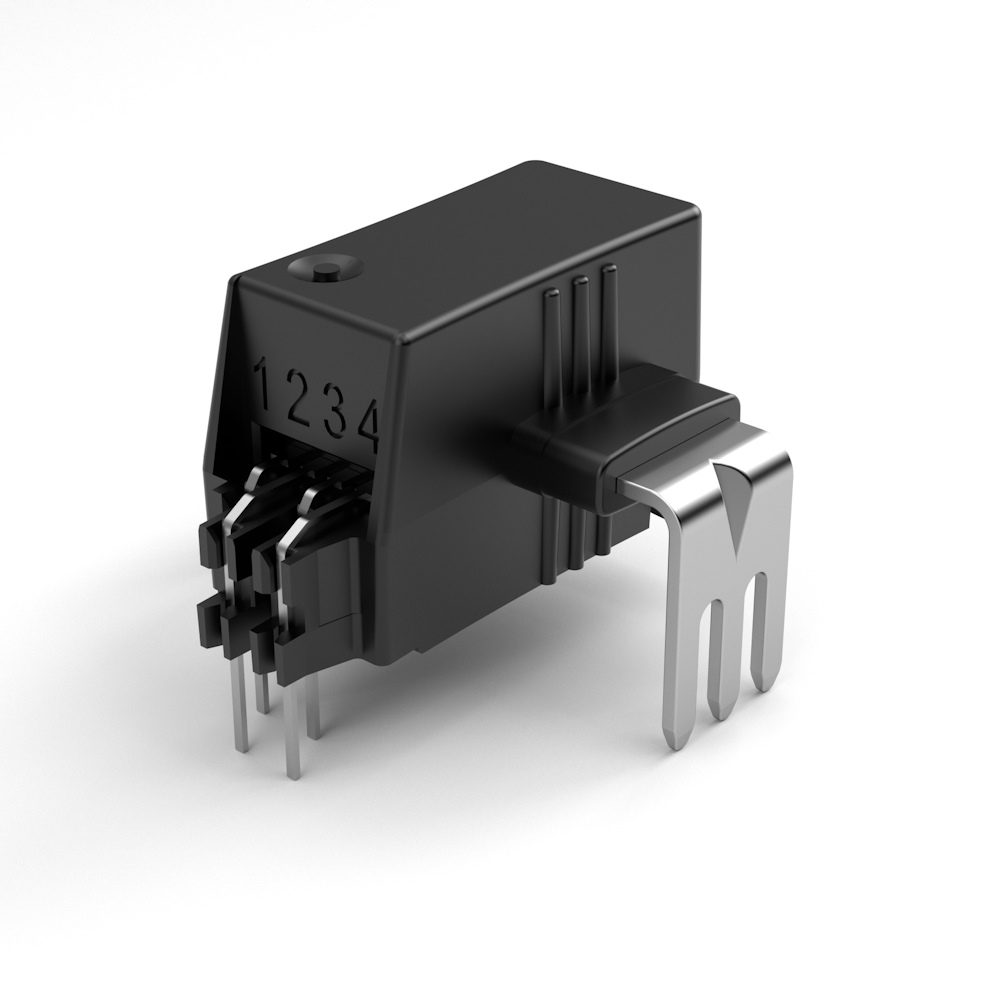

HLSR 50-PW-080
50 A RMS nominal. 2W CMOS CLK In output.
- 系列
-
HLSR-PW
- 测量类型
-
电流
- 额定值
-
50 A
- 测量范围
-
125 A
- 副边输出信号
-
其它
- 副边输出信号值
- 瞬时 Pulse Density Modulation (PDM)
- 原边信号
-
AC + DC
- 工作电压
-
外部供电 DC 单向
- 工作电压范围
- 5 - 5 V
- 精度
- 1 %
- 工作温度
- -40 °C / 105 °C
- 技术
-
开环霍尔效应
- 安装
-
PCB
- 应用
-
自动化驱动电源可再生能源焊接
FRONT
BACK
LEFT
RIGHT
