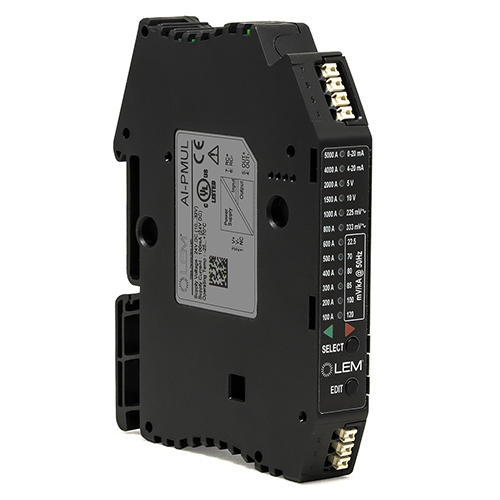

AI-PMUL
Integrator for Rogowski coils. Multiple sensitivities possibilities: 22.5, 70, 80, 85, 100 or 120 mV/kA to be selected on the product, Multiple outputs signals possibilities: Either Current (True RMS) 0-20 mA or 4-20 mA or Voltage (True RMS) 0-5 V or 0-10 V or Voltage (Instantaneous) ,0-225 mVac or 0-333 mVac to be selected on the product
Model details
AI-PMUL
Integrator for Rogowski coils. 22.5, 70, 80, 85, 100 or 120 mV/kA as sensitivities. Outputs signals: Current (True RMS) 0-20 mA or 4-20 mA or Voltage (True RMS) 0-5 V or 0-10 V or Voltage (Instantaneous) 0-225 mVac or 0-333 mVac
- Series
-
AI-PMUL
- Measurement
-
電流センサ
- Nominal Value
-
100 A, 200 A, 300 A, 400 A, 500 A, 600 A, 800 A, 1000 A, 1500 A, 2000 A, 4000 A, 5000 A
- Measuring Range
-
5000 A
- Second. Nominal Signal
-
その他
- Second. Nominal Signal Value
- DC TRMS & Instantaneous Multiple Current & Voltage
- Primary Signal
-
AC
- Supply Voltage
-
外部DCユニポーラ
- Supply Voltage Range
- 10 - 32 V
- Accuracy
- 0.5 %
- Op. Temperature
- -25 °C / 70 °C
- 技術
-
Integrator
- Mounting
-
DIN レール
- アプリケーション
-
オートメーションスマートグリッド

FRONT
BACK
LEFT
RIGHT
