AKR
AC Current range from 2A to 200A selectable by a jumper,True RMS version. Several types of output: 4-20mA, 0-5V or 0-10V. Bandwidth 50/60Hz to 400Hz. Solid or split core

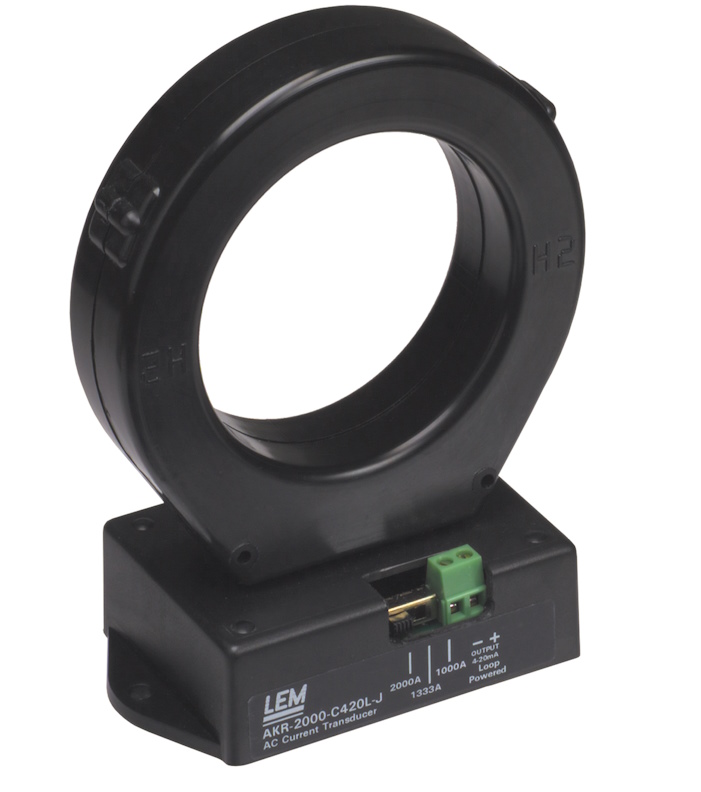

AKR 2000 C420L J
AC Current range 1000, 1333 & 2000A selectable by a jumper, True RMS version, Current output: 4-20 mA DC, Bandwidth 10-400Hz, Loop powered, Solid core with large 76 mm diameter aperture
- Series
-
AKR
- Measurement
-
電流センサ
- Nominal Value
-
1000 A, 1333 A, 2000 A
- Measuring Range
-
2375 A
- Second. Nominal Signal
-
電流
- Second. Nominal Signal Value
- DC TRMS 4-20mA
- Primary Signal
-
AC
- Supply Voltage
-
ループパワー
- Supply Voltage Range
- 24 - 24 V
- Accuracy
- 1 %
- Op. Temperature
- -20 °C / 50 °C
- 技術
-
カレントトランス
- Mounting
-
パネル
- アプリケーション
-
オートメーションスマートグリッド
