低功耗、多功能输出型积分器
用于罗戈斯基的LEM集成器
MULTI-OUTPUT DIGITAL ROGOWSKI INTEGRATORS
LEM provides several Rogowski coil integrators to complement its flexible clip-around coils ART and ARU families.

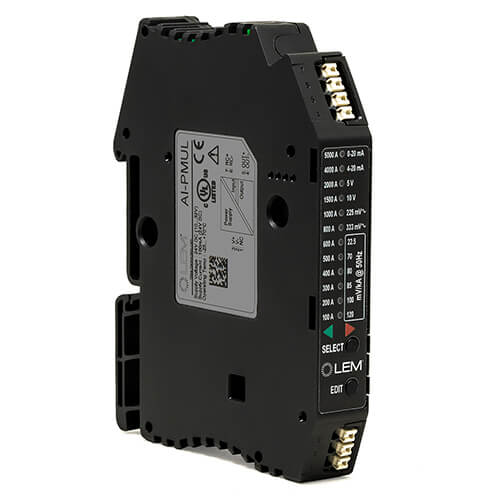

The AI-PMUL Rogowski coil integrator design is based on digital processing to give combined dynamic range, accuracy, and versatility of use. It offers a wide range of output signals both RMS and instantaneous. AI-PMUL can be stacked for multiphase application without spacing.
AI-P1A Rogowski coil signal conditioner provides a 1 A output instantaneous signal to replace conventional current transformer with dynamic extended range.
AI-P1A and AI-PMUL can be stacked up to 3 Integrator modules and use only one power supply for multiphase application without spacing.
Both LEM integrators for Rogowski Coils are DIN rail mounted.
低功耗、多功能输出型积分器
主要特性：
参数：
- 从100A到5000A有12种原边电流量程可选
- 可配套从22.5mV/KA到120mV/KA 6种输出的罗氏线圈
- 6种输出类型可选： 4种真有效值输出0-20mA, 4-20mA, 0-5V & 0-10V和2种瞬时电压输出0-225mV and 0-333mV
- 可以通过2个按钮进行设置
- 两种颜色LED灯指示配置状态
- 工作温度-25C 到+70°C
- 单电源供电：+24V
备注：
- 测量小电流时建议选用SMA同轴电缆接头
- 3个积分器可以用一个连接器连在一起共用一个电源
- 1A瞬时电流输出型积分器将在近期上市
INTEGRATOR AI-PMUL SERIES DOWNLOAD & TECHNICAL CHARACTERISTICS
| Product | Document | Nominal Value | Op. Temperature | Output current (True RMS) |
Output voltage (True RMS) |
Output voltage (Instantaneous) |
|---|---|---|---|---|---|---|
| AI-PMUL | Datasheet 3D User guide |
100 A – 5000 A | -25 °C / 70 °C | 0-20 mA or 4-20 mA | 0-5 V or 0-10 V | 0-225 mVac or 0-333 mVac |

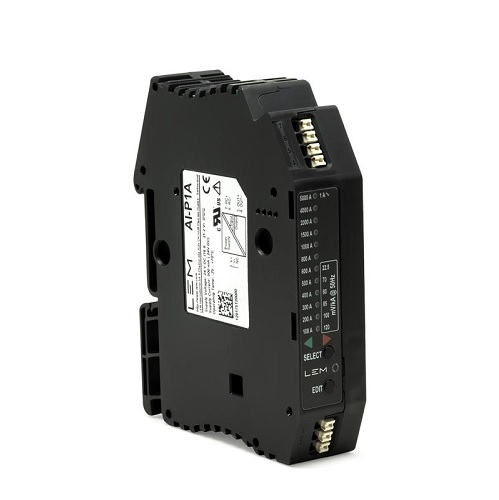

INTEGRATOR AI-P1A SERIES
Main characteristics & benefits
- Compact design for DIN rail assembly
- High accuracy Class 0.5 (IEC 61869-2)
- Setup by user via Select / Edit buttons
- Clear status indication via bi-color led
- Over-temperature protection function.
Features
- Accuracy Class 0.5 (IEC 61869-2) (1)
- Linearity error ≤ 0.10 %
- Protection degree IP2X
- 35 mm DIN rail mounted
- Push-in terminals
- 1 A instantaneous output signals
- 6 selectable sensitivities depending on Rogowski coil from 22.5 to 120 mV/kA
- 12 selectable ranges from 100 to 5000 A
- Ambient operating temperature: 25 °C to +70 °C.
Typical applications
- MV/LV substations: transformer condition monitoring
- Power measurement: current measurement for active power calculation
- Building sub-metering: energy efficiency monitoring, consumption analysis and cost allocation
- Power quality monitoring: electrical loads and distribution system equipment
- Fault Detection, Isolation and Repair (FDIR)
- Remote Terminal Units (RTU)
- Automation
- Smart Grid
SMA coaxial connector for small current measurement is proposed as option.
Just like AI-PMUL, 3 AI-P1A integrators can be stacked together to share a single power supply.
INTEGRATOR AI-P1A SERIES DOWNLOAD & TECHNICAL CHARACTERISTICS
