HAC Family
For the electronic measurement of currents: DC, AC, pulsed... with galvanic separation between the primary circuit and the secondary circuit.
HAC - Current sensors

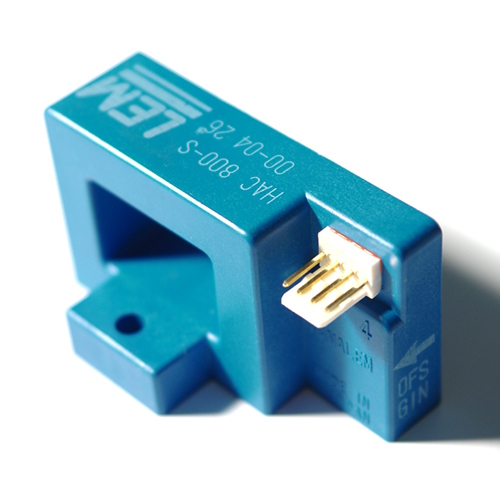

The HAC series is composed of compact current sensors for AC and DC currents from 200 to 800A. They are designed for industrial applications.
These sensors benefit from instantaneous voltage output of +/- 4 V., a bipolar power supply of +/- 15 V and a bandwidth of DC 50 kHz.
HAC current transducers are based on the open loop Hall effect technology.
HAC – Features and benefits
Main characteristics
- Hall effect measuring principle
- Insulating plastic case recognized according to UL 94-V0
Benefits
- Low insertion losses
- Easy installation
- Low power consumption
- Small size and space saving
- Only one design for wide current ratings range
- High immunity to external interference
Typical applications
HAC current sensors are commonly used in industrial applications:
- AC variable speed drives and servo motor drives
- Static converters for DC motor drivers
- Battery supplied applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies (SMPS)
- Power suppliers for welding applications
LEM HAC – Download & Technical Characteristic
Product | Order | Document | Primary nominal RMS voltage | Supply Voltage range | Op. Temperature |
|---|---|---|---|---|---|
| HAC 200-S | Datasheet | 200 A | 15 to 15 | -10 to 80 °C | |
| HAC 300-S | Datasheet 3D | 300 A | 15 to 15 | -10 to 80 °C | |
| HAC 400-S | Datasheet 3D | 400 A | 15 to 15 | -10 to 80 °C | |
| HAC 600-S | Datasheet | 600 A | 15 to 15 | -10 to 80 °C | |
| HAC 800-S | Datasheet 3D | 800 A | 15 to 15 | -10 to 80 °C |
HAC Sensors – ASK FOR SAMPLES / QUOTATIONS
Looking to receive samples or a quotation? Please click on the contact button below and provide us with the information you need on this product series. Our sales team will get back to you shortly.
