HMSR-SMS

Miniature current sensor. SO16 IC, low profile 6 mm height, reinforced insulation, primary conductor included, 20 kA overload current bursts withstanding, cost effective, 0.5 % typical accuracy into the operating temperature range, 2 us response time, -40°C to + 125°C, 2 x Overcurrent Detection outputs, + 5 V power supply, Fixed offset and sensitivity, Reference access

Model details

HMSR 20-SMS

20A nominal, SO16 IC, 4.95kVRMS insulation test voltage, Primary conductor included, Cost effective, 0.5% typical accuracy in the temperature range, 2 us response time, -40 to +125°C, 2x Overcurrent Detection outputs, +5V power supply,

Series
HMSR-SMS
Measurement
電流センサ
Nominal Value
20 A
Measuring Range
50 A
Second. Nominal Signal
電圧
Second. Nominal Signal Value
瞬時 2.5 +/- 0.8 V
Primary Signal
AC + DC
Supply Voltage
外部DCユニポーラ
Supply Voltage Range
5 - 5 V
Accuracy
1.25 %
Op. Temperature
-40 °C / 125 °C
技術
オープンループ・ホール効果
Mounting
基板
アプリケーション
ドライブ
電源
再生可能エネルギー
溶接

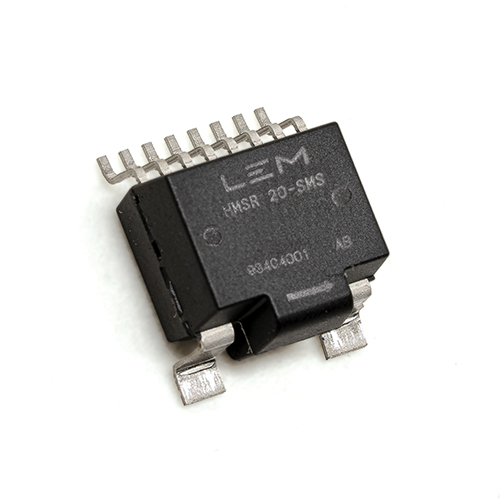

HMSR 20-SMS
FRONT
BACK
LEFT
RIGHT
ダウンロード

Relative information

注文

連絡先

シリーズ

同じシリーズの製品

HMSR 10-SMS

10A nominal, SO16 IC, 4.95kVRMS insulation test voltage, Primary conductor included, Cost effective, 0.5% typical accuracy in the temperature range, 2 us response time, -40 to +125°C, 2x Overcurrent Detection outputs, +5V power supply,

HMSR 15-SMS

15A nominal, SO16 IC, 4.95kVRMS insulation test voltage, Primary conductor included, Cost effective, 0.5% typical accuracy in the temperature range, 2 us response time, -40 to +125°C, 2x Overcurrent Detection outputs, +5V power supply,

HMSR 30-SMS

30A nominal, SO16 IC, 4.95kVRMS insulation test voltage, Primary conductor included, Cost effective, 0.5% typical accuracy in the temperature range, 2 us response time, -40 to +125°C, 2x Overcurrent Detection outputs, +5V power supply,

HMSR 6-SMS

6A nominal, SO16 IC, 4.95kVRMS insulation test voltage, Primary conductor included, Cost effective, 0.5% typical accuracy in the temperature range, 2 us response time, -40 to +125°C, 2x Overcurrent Detection outputs, +5V power supply,

HMSR 8-SMS

8A nominal, SO16 IC, 4.95kVRMS insulation test voltage, Primary conductor included, Cost effective, 0.5% typical accuracy in the temperature range, 2 us response time, -40 to +125°C, 2x Overcurrent Detection outputs, +5V power supply,
