HAS Family

Compact current transducers for AC and DC currents from 50 to 600A.

HAS - Current Sensors

The HAS product family serves as a versatile solution for electronically measuring DC, AC, and pulsed currents while ensuring galvanic isolation between the primary circuit and the secondary circuit.

HAS sensors offer an instantaneous voltage output ranging of +/- 4 V, operate with a bipolar power supply of +/- 15 V, and possess a bandwidth extending to DC 50 kHz.

HAS current sensors relies on open-loop Hall effect technology and is primarily tailored for industrial applications, their primary target market.

HAS – Features and benefits

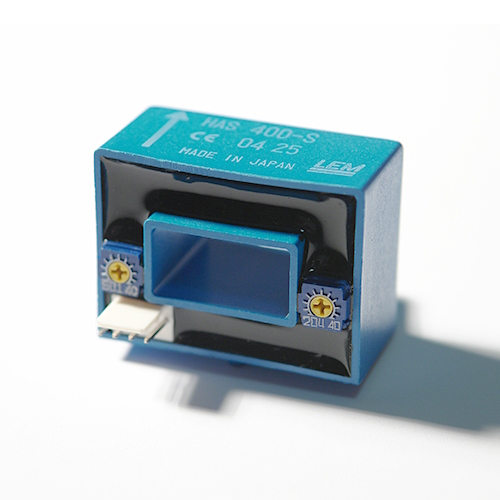

HAS current sensors

Main characteristics

  • Open Loop transducer using the Hall effect measuring principle
  • Insulating plastic case made of polycarbonate PBT recognized according to UL 94-V0

Benefits

  • Easy mounting
  • Low power consumption
  • Small size and space saving
  • Only one design for wide current ratings range
  • High immunity to external interference

Typical applications

HAS current sensors are specifically designed and manufactured for use in industrial applications. They can be effectively employed in various industrial scenarios, including but not limited to:

LEM HAS – Download & Technical Characteristics

Product Document Primary nominal RMS voltage Supply Voltage range Op. Temperature
HAS 50-S

Datasheet
3D

50 A 15 to 15 -10 to 80 °C
HAS 100-P

Datasheet
3D

100 A 15 to 15 -10 to 80 °C
HAS 100-S Datasheet
3D
100 A 15 to 15 -10 to 80 °C
HAS 200-P Datasheet
3D
200 A 15 to 15 -10 to 80 °C
HAS 200-S Datasheet
3D
200 A 15 to 15 -10 to 80 °C
HAS 200-S/SP105 Datasheet 200 A 15 to 15 -40 to 105 °C
HAS 200-S/SP58 Datasheet
3D
200 A 15 to 15 -40 to 105 °C
HAS 300-P Datasheet
3D
300 A 15 to 15 -10 to 80 °C
HAS 300-S Datasheet
3D
300 A 15 to 15 -10 to 80 °C
HAS 400-S Datasheet
3D
400 A 15 to 15 -10 to 80 °C
HAS 500-S Datasheet
3D
500 A 15 to 15 -10 to 80 °C
HAS 500-S/SP105 Datasheet 500 A 15 to 15 -40 to 105 °C
HAS 500-S/SP58 Datasheet
3D
500 A 15 to 15 -40 to 105 °C
HAS 600-S Datasheet
3D
600 A 15 to 15 -10 to 80 °C
