LT 10000 Family
For DC, AC, pulse currents' measurements of 10000 ARMS nominal with galvanic isolation

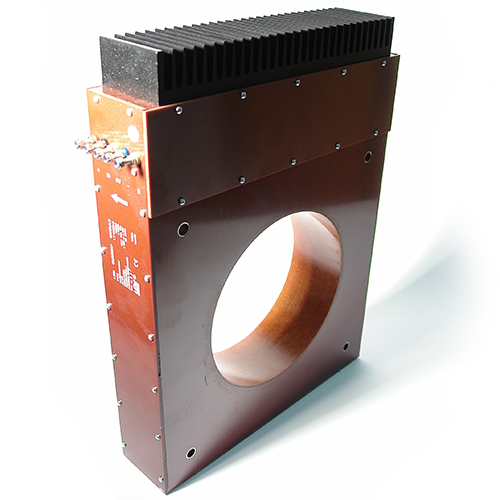

LT 10000 - Current Sensors
The LT 10000 Series consists of compact current sensors explicitly engineered for industrial use.
These sensors offer outstanding accuracy and rapid response times, and they operate effectively with a dual supply ranging from +/- 48 to +/- 60V.
To ensure proper utilization, these components must be securely mounted on a panel. They are equipped with a primary conductor crossing that accommodates a diameter of 200 mm.
LT 10000 current sensors rely on closed-loop Hall effect technology for their operation.
LT 10000 – Features and benefits
Main characteristics
- Closed loop (compensated) current sensor using the hall effect
Benefits
- Excellent accuracy
- Very good linearity
- Low temperature drift
- Optimized response time
- Wide frequency bandwidth
- No insertion losses
- High immunity to external interference
- Current overload capability
Typical applications
LT 10000 current sensors are widely employed within the industrial sector.
These applications include:
- AC variable speed drives and servo motor drives
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies (SMPS)
- Power supplies for welding applications
LEM LT 10000 – Download & Technical Characteristic
| Product | Order | Document | Primary nominal RMS voltage | Supply Voltage range | Op. Temperature |
|---|---|---|---|---|---|
| LT 10000-S | Datasheet 3D | 10000 A | 60 to 48 | -25 to 70 °C |
