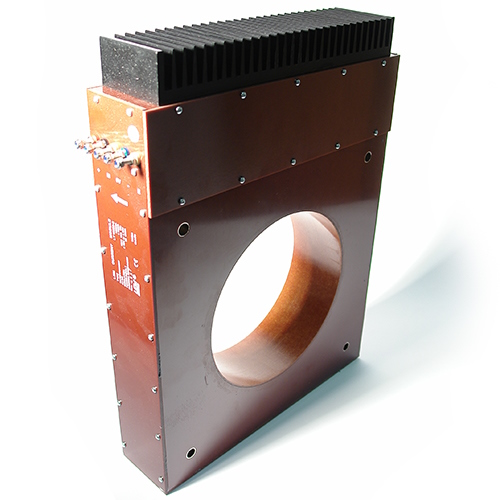

LT10000

Closed Loop Hall effect. DC, AC pulse currents' measurements of 10000 ARMS nominal with galvanic isolation. To be panel mounted. Aperture 200 mm diameter for the primary conductor crossing. Excellent accuracy, good response time, Current output, -25°C to + 70°C. Dual supply +/- 48 to +/- 60V.

Model details

LT 10000-S

10000 ARMS nominal.

Series
LT10000
Measurement
Current
Nominal Value
10000 A
Measuring Range
15000 A
Second. Nominal Signal
Current
Second. Nominal Signal Value
Instantaneous 1000 mA
Primary Signal
AC + DC
Supply Voltage
External DC Bipolar
Supply Voltage Range
48 - 60 V
Accuracy
0.3 %
Op. Temperature
-25 °C / 70 °C
Technology
Closed loop Hall effect
Mounting
Panel
Applications
Drives
Power Supplies
Renewable Energies
Welding
 LT 10000-S  LT10000
FRONT
BACK
LEFT
RIGHT
