Current Sensors

LEM is a leading supplier of current sensors (also called current transducers), offering a wide range of galvanically isolated sensors that have become industry standards. The broad range of sizes, measuring range, from tiny currents to 24kA, and integration options, busbar, PCB mounted, make them ideal solutions for a broad range of applications.

What is a current sensor used for?

As its name suggests, a current sensor measures the flow of current in a conductor.

It can be used in a wide variety of applications, to control the electrical parameters of a locomotive engine for example, or the state of charge of an electric car battery.

For more than 50 years, LEM has grown its expertise and current sensor portfolio to answer the growing demand for current measurement solutions. With its broad portfolio of current sensors and voltage sensors, LEM can address many different applications and meet the various electrical measurement specifications of its customers, be it for accuracy, bandwidth, creepage.

This broad offer in current measurement solutions is the direct results of our many years of experience and expertise.


Measuring current using Hall effect, Fluxgate or Air core sensors

Current can be measured by a current transducer relying on different technologies.

A Hall Effect current sensor (open loop or closed loop) will provide an extended measuring range, good global accuracy while preventing from insertion losses.

The specificity of an air-core sensor is that it is working without a magnetic circuit. Also known as Rogowski current sensors, this technology is easy to use and allows for non-contact measurement of AC & pulsed signal.

The Fluxgate current sensor technology will bring the highest accuracy and a strong performance of the current measurement.



Featured LEM current sensors families

HLSR

HLSR current sensors series

HLSR is our best seller in the solar industry. It brings a lot of benefits along with a small footprint.

  • DC&AC isolated current measurement with 5 ranges: 10 ARMS, 20 ARMS, 32 ARMS, 40 ARMS, 50 ARMS
  • Access to voltage reference
  • Low offset & gain drift

MAIN FEATURES

  • Single supply +5 V or +3.3 V (2 different models)
  • Isolation test voltage: 4.3 KVRMS / 50Hz / 1min
  • Through hole (-P) or surface (-SM) PCB mounting models

View more

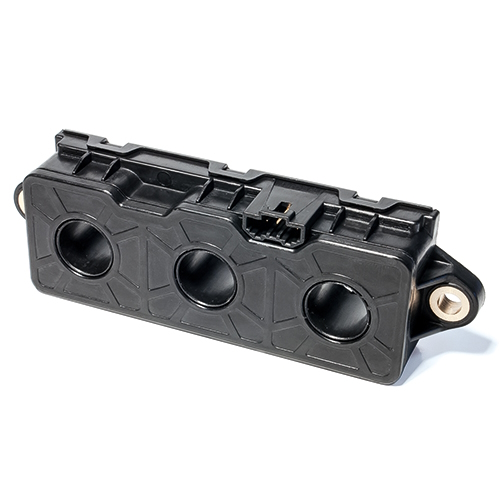

HAH3DR

HAH3DR automotive motor control current sensors

HAH3DR is our 3 phase current sensor for automotive motor control

  • Excellent accuracy
  • Very good linearity
  • Very low thermal offset drift

MAIN FEATURES

  • Open Loop transducer using the Hall effect sensor
  • Low voltage application
  • Unipolar +5 V DC power supply


View more

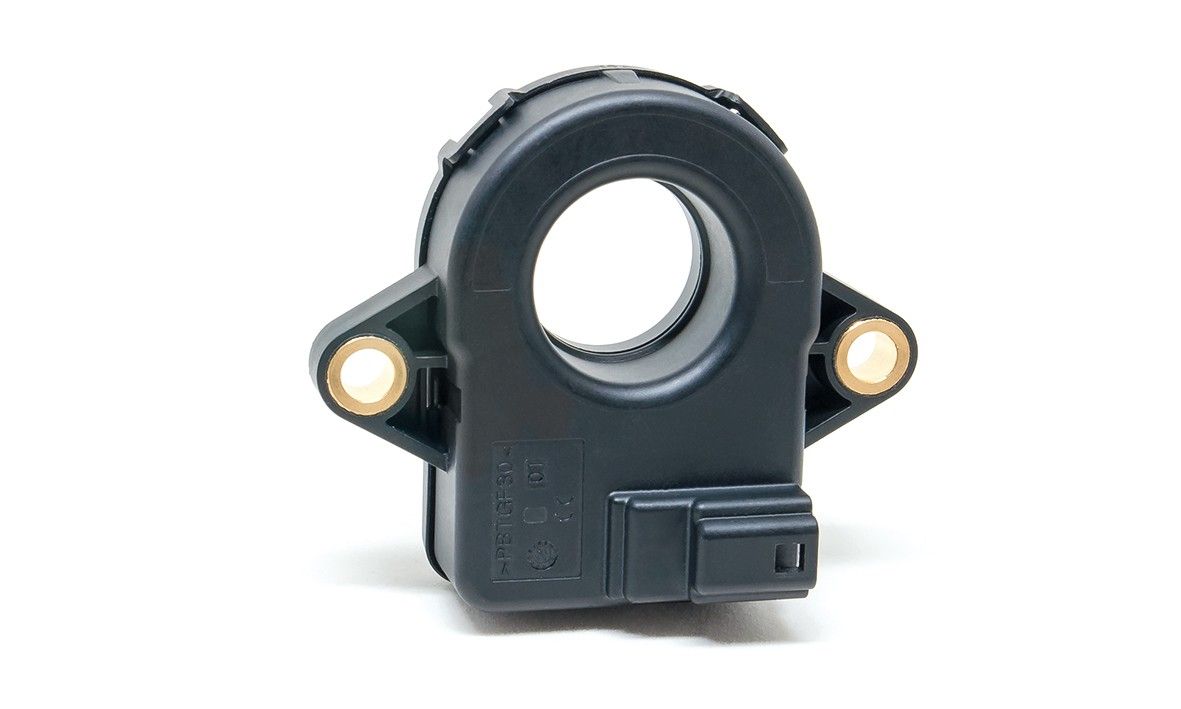

CAB

CAB series current sensors

CAB is the best in class current transducer family for state of charge estimation in EV battery management systems

  • High global accuracy (<0.5%) and low offset (<50mA)
  • Measurement of bi-directional current up to 1500A
  • Over Current Detection

MAIN FEATURES

  • Fluxgate based measurement
  • Automotive quality standards compliant
  • Unipolar +12V battery power supply

View more

LAH

Current sensor LAH

LAH family are closed loop current sensors dedicated to industrial applications

  • PCB mounting design for isolated AC&DC current measurement of 8 to 125 ARMS nominal
  • 2 different compact designs

MAIN FEATURES

  • Dual supply +/- 12 to +/- 15 V
  • Isolation test voltage: 5 kVRMS / 50 Hz / 1min
  • Current output

View more

CTSR

Current sensor CTSR

CTSR is a closed loop current sensor with high accuracy and very low offset drift over temperature to ensure electrical safety in industrial applications

  • 2 standard models
  • PCB mounting
  • Small currents' measurement from 0.3 to 0.6 ARMS nominal

MAIN FEATURES

  • DC, AC, pulse, small currents' measurements with galvanic isolation
  • Single supply: 0,+5V
  • Non-contact measurement with high aperture (Ø 20.1 mm)

View more

Which parameters need to be considered to select the right current sensor?

The selection of a current sensor is the result of a technical and economic trade-off, considering the sensor as well as the whole associated system.

Prior to selecting a current transducer, it is mandatory to consider all aspects of the intended application first.

The following parameters will need specific attention:

  • Electrical requirements: power supply, peak measurement, response time…
  • Mechanical requirements: aperture size, overall dimensions, mounting, materials…
  • Thermal conditions: current profile versus time, maximum RMS measurement, cooling…
  • Environmental conditions: vibrations, temperature, proximity of magnetic fields…

Performing tests in the specific application environment is also strongly recommended to make sure that the current sensor is the right fit for it.

Where do we find current sensors?

Current sensors are used in every area where electricity is used. And there are lots of domains complying to this:

Want to know more about our current sensing offer?

Feel free to check our innovation page to know more about the technologies used in our current transducers offer.

You can also user our product list and its intuitive filters to select the right part for your application.

Our team remains available for any inquiry you might still have.
