LV (Voltage)

DC, AC pulse voltage measurements of 100 to 4000 VRMS nominal with galvanic isolation

LV Voltage Sensors

The LV sensor family offers versatility for a range of electrical measurements. Among these possibilities, the LV Voltage series specializes in voltage measurement.

Conversely, the LV Voltage sensors are meticulously crafted for the accurate measurement of DC, AC, or pulsed currents, all while ensuring robust galvanic isolation between the primary and secondary circuits.

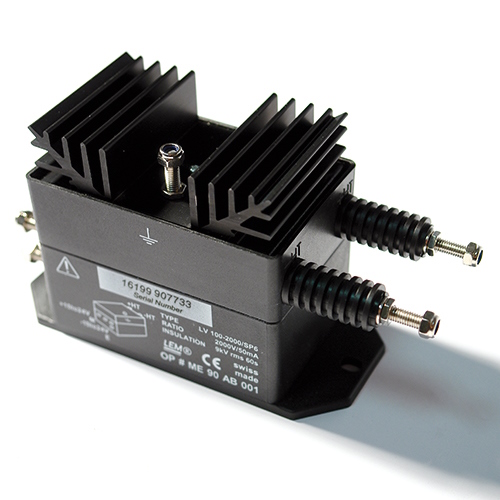

These voltage sensors are designed for panel mounting and leverage closed-loop Hall effect technology, guaranteeing precision and dependability. This technology renders them exceptionally suitable for a wide spectrum of applications, encompassing both industrial and traction contexts.

LV Voltage – Features and benefits

Features

Closed loop (compensated) Hall effect sensor
Insulating plastic case recognized according to UL 94-V0
Primary resistor – incorporated within the housing

Main characteristics

Excellent accuracy
Very good linearity
Low temperature drift
Optimized delay time
Wide frequency bandwidth
High immunity to external interference
No insertion losses

Typical applications

The LV Voltage sensors are designed for industrial applications such as:

AC variable speed drives and servo motor drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Power supplies for welding applications

Traction is also one of the key application areas for LV Voltage, on fixed installations and onboard trains and locomotives:

Single or three phase inverters
Propulsion and braking choppers
Propulsion converters
Auxiliary converters
Battery chargers

LEM LV Voltage – Download & Technical Characteristic

Product	Document	Primary nominal RMS voltage	Supply Voltage range	Op. Temperature
LV 100-100	Datasheet	100 V	15 to 15	0 to 70 °C
LV 25-200	Datasheet 3D	200 V	15 to 12	-25 to 70 °C
LV 100-400	Datasheet	400 V	24 to 15	0 to 70 °C
LV 25-400	Datasheet 3D	400 V	15 to 12	-25 to 70 °C
LV 100-500	Datasheet	500 V	15 to 15	0 to 70 °C
LV 100-500/SP6	Datasheet	500 V	24 to 15	-40 to 70 °C
LV 100-600	Datasheet	600 V	15 to 15	0 to 70 °C
LV 100-600/SP6	Datasheet	600 V	24 to 15	-40 to 75 °C
LV 25-600	Datasheet 3D	600 V	15 to 12	-25 to 70 °C
LV 25-600/SP2	Datasheet	600 V	15 to 12	-30 to 70 °C
LV 100-750/SP4	Datasheet	750 V	24 to 15	-40 to 70 °C
LV 100-750/SP8	Datasheet	750 V	15 to 15	-40 to 80 °C
LV 100-800	Datasheet	800 V	15 to 15	0 to 70 °C
LV 25-800	Datasheet	800 V	15 to 12	-25 to 70 °C
LV 100-1000	Datasheet 3D	800 V	15 to 15	0 to 70 °C
LV 100-1000/SP13	Datasheet 3D	1000 V	33 to 16	-25 to 70 °C
LV 100-1000/SP16	Datasheet 3D	1000 V	24 to 15	-25 to 70 °C
LV 100-1000/SP9	Datasheet 3D	1000 V	24 to 15	-40 to 70 °C
LV 25-1000	Datasheet	1000 V	15 to 12	-25 to 70 °C
LV 25-1000/SP1	Datasheet 3D	1000 V	15 to 12	-30 to 70 °C
LV 25-1000/SP3	Datasheet 3D	1000 V	24 to 24	-40 to 85 °C
LV 100-1200	Datasheet	1200 V	15 to 15	0 to 70 °C
LV 25-1200	Datasheet 3D	1200 V	15 to 12	-25 to 70 °C
LV 100-1500	Datasheet	1500 V	15 to 15	0 to 70 °C
LV 100-1500/SP3	Datasheet 3D	1500 V	24 to 15	-40 to 85 °C
LV 100-2000	Datasheet 3D	2000 V	15 to 15	-40 to 85 °C
LV 100-2000/SP15	Datasheet	2000 V	24 to 15	-40 to 75 °C
LV 100-2000/SP17	Datasheet	2000 V	24 to 15	-25 to 80 °C
LV 100-2000/SP18	Datasheet 3D	2000 V	24 to 15	-40 to 70 °C
LV 100-2000/SP5	Datasheet 3D	2000 V	24 to 15	-25 to 70 °C
LV 100-2000/SP6	Datasheet 3D	2000 V	24 to 15	-40 to 85 °C
LV 100-3000/SP12	Datasheet 3D	3000 V	24 to 15	-40 to 70 °C
LV 100-3000/SP3	Datasheet	3000 V	24 to 15	-25 to 70 °C
LV 100-3500	Datasheet	3500 V	15 to 15	0 to 70 °C
LV 100-3500/SP2	Datasheet 3D	3600 V	24 to 24	-25 to 70 °C
LV 100-4000	Datasheet 3D	4000 V	15 to 15	0 to 70 °C
LV 100-4000/SP2	Datasheet	4000 V	24 to 15	-25 to 70 °C
LV 100-4000/SP6	Datasheet 3D	4000 V	24 to 15	-40 to 85 °C
LV 100-5000/SP1	Datasheet 3D	5000 V	24 to 15	-40 to 85 °C
