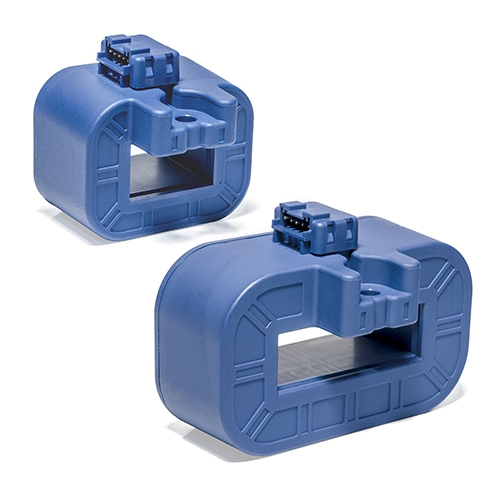

HOYS & HOYL
High performance, contactless current sensors for DC, AC and pulse currents measurements of 100 A, 200 A, 400 A, 500 A, and 560 ARMS nominal with galvanic isolation for the HOYS Series; and of 200 A, 400 A, 600 A, and 800 ARMS nominal with galvanic isolation for the HOYL Series.
HOYS, HOYL - Hall Effect current sensors
The HOYS and HOYL product series are highly performing current sensors relying on the hall effect technology (open loop). They are to be mounted on busbars with large apertures.
The HOYS and HOYL current transducers benefit from overcurrent detection set at 2.93 x Ipn on a dedicated connection, short response time, low offset and gain drift.
These products are dedicated to the industrial domain.
HOYS, HOYL – Features and benefits
Main characteristics
- Open loop multi-range current sensor
- Voltage output
- Single supply +5 V
- Overcurrent detect 2.93 × IP N (peak value)
- Galvanic separation between primary and secondary circuit
- Low power consumption
- For busbar mounting
- Aperture: 21.5 × 13 mm (HOYS Series)
- Aperture: 40 × 13 mm (HOYL Series)
- Factory calibrated
- Mating JST connector:
- housing PAP-05V-S
- contact SPHD-00xT-P0.5
Benefits
- Low offset drift
- Over-drivable Uref
- Creepage / clearance > 10.5 mm
- Fast response
- Low profile 2 mm pitch connector for 22 to 28 AWG wire.
Typical applications
HOYS and HOYL current sensors are designed for industrial applications such as:
- AC variable speed and servo motor drives
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies (SMPS)
- Power supplies for welding applications
- Combiner box
- Solar inverter on DC side of the inverter (MPPT)
LEM HOYS, HOYL – Download & Technical Characteristic
HOYS Series
| Product | Order | Document | Primary nominal RMS voltage | Supply Voltage range | Op. Temperature |
|---|---|---|---|---|---|
| HOYS 100-S-0100 | Datasheet | 100 A | 5 to 5 | -40 to 105 °C | |
| HOYS 100-S/SP33-1106 | Datasheet | 100 A | 3.3 to 3.3 | -40 to 105 °C | |
| HOYS 200-S-0100 | Datasheet | 200 A | 5 to 5 | -40 to 105 °C | |
| HOYS 200-S/SP33-1106 | Datasheet | 200 A | 3.3 to 3.3 | -40 to 105 °C | |
| HOYS 400-S-0100 | Datasheet | 400 A | 5 to 5 | -40 to 105 °C | |
| HOYS 400-S/SP33-1106 | Datasheet | 400 A | 3.3 to 3.3 | -40 to 105 °C | |
| HOYS 500-S-0100 | Datasheet | 500 A | 5 to 5 | -40 to 105 °C | |
| HOYS 500-S/SP33-1106 | Datasheet | 500 A | 3.3 to 3.3 | -40 to 105 °C | |
| HOYS 560-S-0100 | Datasheet | 560 A | 5 to 5 | -40 to 105 °C | |
| HOYS 560-S/SP33-1106 | Datasheet | 560 A | 3.3 to 3.3 | -40 to 105 °C |
HOYL Series
| Product | Order | Document | Primary nominal RMS voltage | Supply Voltage range | Op. Temperature |
|---|---|---|---|---|---|
| HOYL 200-S-0100 | Datasheet | 200 A | 5 to 5 | -40 to 105 °C | |
| HOYL 400-S-0100 | Datasheet | 400 A | 5 to 5 | -40 to 105 °C | |
| HOYL 600-S-0100 | Datasheet | 600 A | 5 to 5 | -40 to 105 °C | |
| HOYL 800-S-0100 | Datasheet | 800 A | 5 to 5 | -40 to 105 °C |
