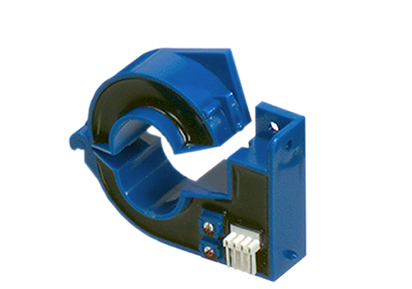

HTR Series – Split Core Current Sensors
The HTR Series split‑core current sensors are engineered for electronic measurement of DC, AC, and pulsed currents across nominal ranges from 50 to 500 A, with full galvanic isolation between primary and secondary circuits. Designed for industrial environments, HTR sensors combine measurement accuracy with mechanical simplicity.
HTR current sensors operate with a dual supply voltage of ±12 V to ±15 V and provide an instantaneous voltage output for real‑time current monitoring.
Unlike the HOP Series, the HTR product line is characterized by a fixed circular aperture of 21 mm, optimized for standard conductor sizes.
Its split‑core design supports fast, non‑intrusive installation, making the HTR Series well suited for industrial systems requiring straightforward current sensing with consistent mechanical integration.
HTR – Features & Benefits
Main characteristics
- Open‑loop Hall‑effect current transducer
- Measurement of isolated DC and AC currents from 50 A up to 500 A nominal
- Designed for panel mounting
- Circular aperture (21 mm diameter) optimized for standard conductors
- Compact housing
- Insulating plastic case recognized according to UL 94‑V0
Benefits
- Low power consumption
- Fast and simple mounting
- High insulation level between primary and secondary circuits
- No insertion losses, preserving system efficiency
Typical applications
The HTR Series is intended for industrial installations where a standardized circular aperture and straightforward integration are required, including:
- Telecom power supplies for monitoring and measuring
- Uninterruptible Power Supplies (UPS)
- Switched‑Mode Power Supplies (SMPS)
- Electrical chemistry equipment
- Choppers
- Battery‑powered systems
LEM HTR – Download & Technical Characteristic
| Product | Check stock | Document | Nominal value | Supply Voltage range | Op. Temperature |
|---|---|---|---|---|---|
| HTR 50-SB | Datasheet 3D | 50 A | 12 to 15 | -10 to 70°C | |
| HTR 100-SB | Datasheet 3D | 100 A | 12 to 15 | -10 to 70°C | |
| HTR 200-SB | Datasheet 3D | 200 A | 12 to 15 | -10 to 70°C | |
| HTR 300-SB | Datasheet 3D | 300 A | 12 to 15 | -10 to 70°C | |
| HTR 400-SB | Datasheet 3D | 400 A | 12 to 15 | -10 to 70°C | |
| HTR 500-SB | Datasheet 3D | 500 A | 12 to 15 | -10 to 70°C |
