AKR

AC Current range from 2A to 200A selectable by a jumper,True RMS version. Several types of output: 4-20mA, 0-5V or 0-10V. Bandwidth 50/60Hz to 400Hz. Solid or split core

Model details

AKR 200 B420L

AC Current range 100, 150 & 200A selectable by a jumper, True RMS version, Current output: 4-20 mA DC, Bandwidth 10-400Hz, Loop powered, Split core

Series
AKR
Measurement
Current
Nominal Value
100 A, 150 A, 200 A
Measuring Range
200 A
Second. Nominal Signal
Current
Second. Nominal Signal Value
DC TRMS 4-20mA
Primary Signal
AC
Supply Voltage
Loop Powered
Supply Voltage Range
24 - 24 V
Accuracy
1 %
Op. Temperature
-20 °C / 50 °C
Technology
Current Transformer
Mounting
Panel
DIN rail
Applications
Automation
Smart Grid
 AKR 200 B420L  AKR
FRONT
BACK
LEFT
RIGHT
Order

Contact Information

Series

Product of the same series

AKR 200 C420L

AC Current range 100, 150 & 200A selectable by a jumper, True RMS version, Current output: 4-20 mA DC, Bandwidth 10-400Hz, Loop powered, Solid core

AKR 2000 C420L J

AC Current range 1000, 1333 & 2000A selectable by a jumper, True RMS version, Current output: 4-20 mA DC, Bandwidth 10-400Hz, Loop powered, Solid core with large 76 mm diameter aperture

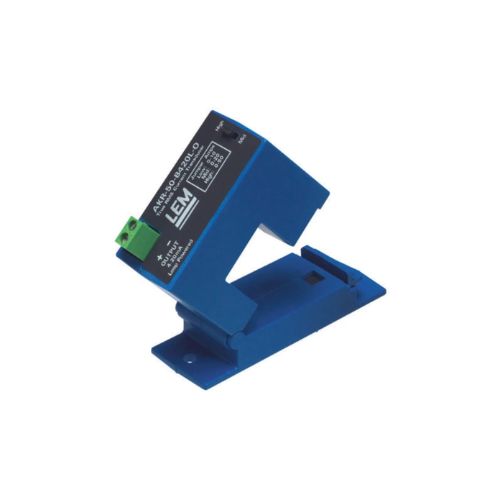

AKR 5 B420L

AC Current range 2 & 5A selectable by a jumper, True RMS version, Current output: 4-20 mA DC, Bandwidth 10-400Hz, Loop powered, Split core

AKR 5 C420L

AC Current range 2 & 5A selectable by a jumper, True RMS version, Current output: 4-20 mA DC, Bandwidth 10-400Hz, Loop powered, Solid core

AKR 50 B420L

AC Current range 10, 20 & 50A selectable by a jumper, True RMS version, Current output: 4-20 mA DC, Bandwidth 10-400Hz, Loop powered, Split core

AKR 50 C420L

AC Current range 10, 20 & 50A selectable by a jumper, True RMS version, Current output: 4-20 mA DC, Bandwidth 10-400Hz, Loop powered, Solid core
