CDSR-NP

32Arms per phase 3P+N, 1mADC measurement, 3.3V, from -40°C to 85°C, SPI and analog output communication,IEC 62955, IEC 62752, UL 2231, IEC 61851-1

Model details

CDSR 0.07-NP

Primary current 32 A RMS, 150 ± mA AC and DC measuring range, SPI & Analog output, Test winding, Vcc at 3.3V, -40°C to 85°C, 2kHz BW, 8 mm dCP/dCl, IEC 62752 / 62955 / 61851-1 / UL 2231

Series
CDSR-NP
Measurement
Current
Nominal Value
0.07 A
Measuring Range
0.15 A
Second. Nominal Signal
Other
Second. Nominal Signal Value
SPI Bipolar SPI
Primary Signal
AC + DC
Supply Voltage
External DC Unipolar
Supply Voltage Range
3 - 3 V
Accuracy
8.3 %
Op. Temperature
-40 °C / 85 °C
Technology
Open loop Fluxgate CAB type
Mounting
PCB
Applications
EV Chargers
Renewable Energies
Smart Grid

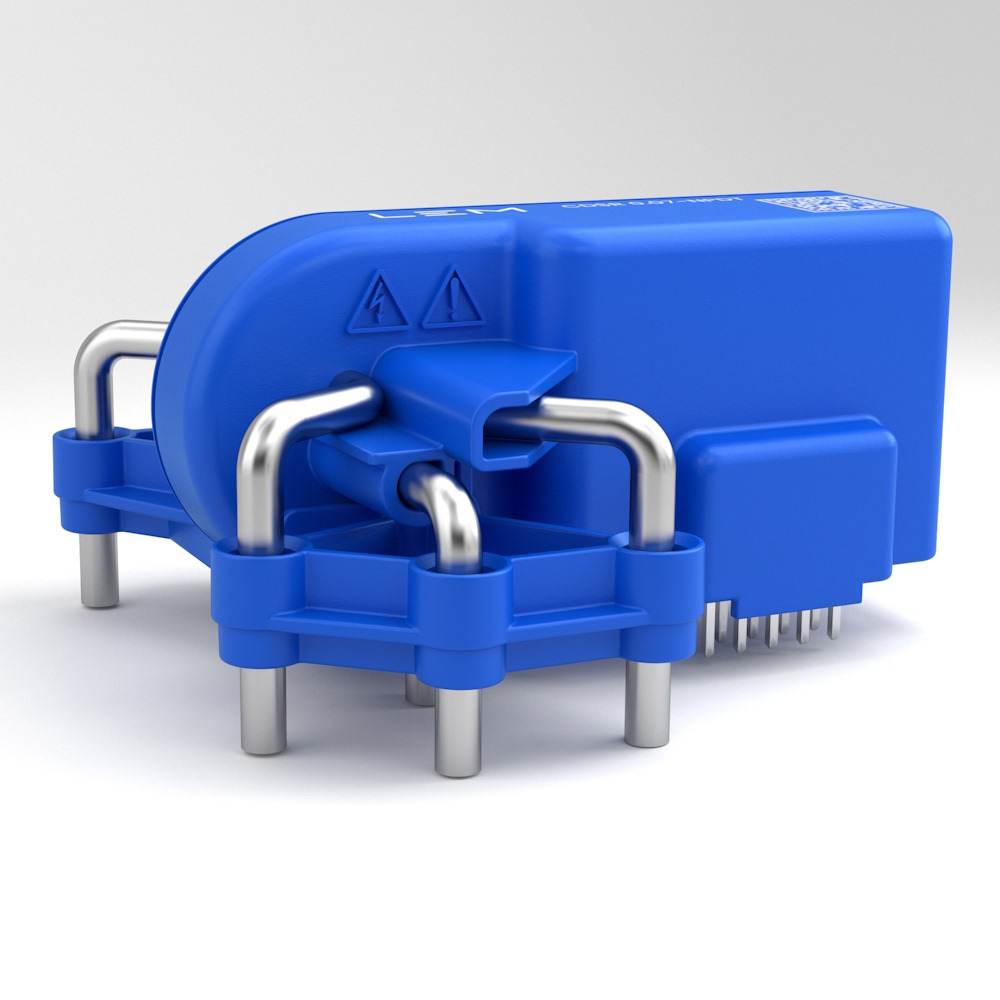

 CDSR 0.07-NP  CDSR-NP
