CV4
Compact voltage transducers for Industrial and Traction - for high accurate high voltage measurements from 2800 to 4242 VRMS with high insulation

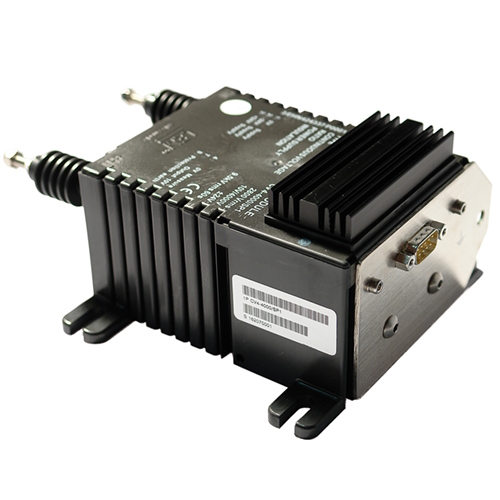

CV 4-4000/SP2 SORTIE COURANT
2800V RMS nominal model, Current output 70 mA @ 2800 V, +/- 24 V power supply, -40°C to +70°C, Overall accuracy: +/- 0.4 %, Output connector SUB- D 9 poles male
- Series
-
CV4
- Measurement
-
Voltage
- Nominal Value
-
2800 V
- Measuring Range
-
4000 V
- Second. Nominal Signal
-
Current
- Second. Nominal Signal Value
- Instantaneous 70 mA
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Bipolar
- Supply Voltage Range
- 24 - 24 V
- Accuracy
- 0.4 %
- Op. Temperature
- -40 °C / 70 °C
- Technology
-
Closed loop Fluxgate C type
- Mounting
-
Panel
- Applications
-
DrivesHigh PrecisionPower SuppliesRenewable EnergiesTractionWelding
