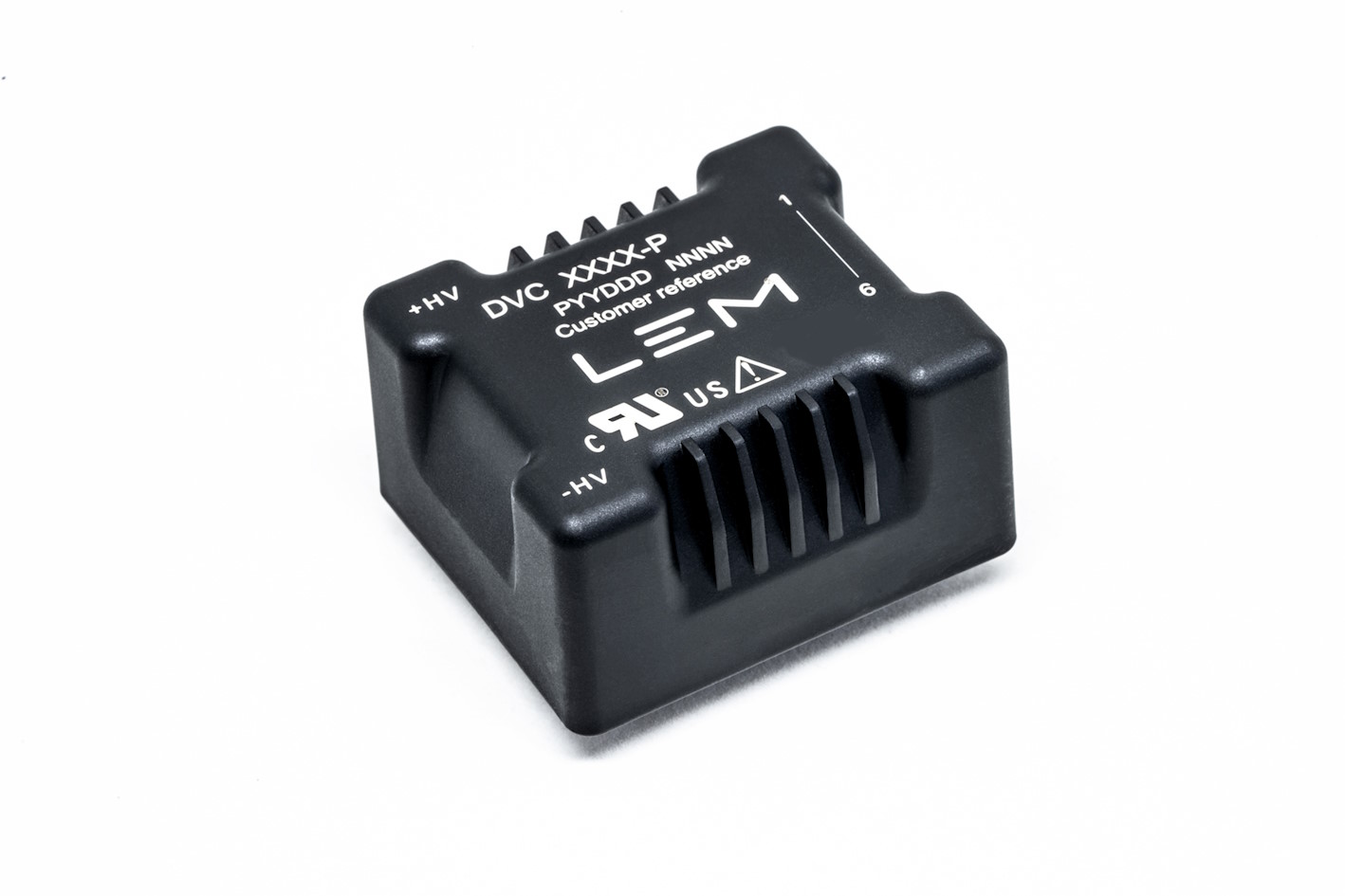

DVC-P
LEM makes the voltage measurement more compact, 37.4cm3 total volume, Fully-isolated nominal measurement of 1000 V DC, AC or pulsed, Compact, light (22 g) and robust package, PCB mounting, 4.2kV as insulation test voltage, Meets latest IRIS requirements for rail traction applications
Model details
DVC 1000-P
1000 VRMS nominal, Overall accuracy: +/- 1.5 % from -40°C to +85°C, 10 us response time.
- Series
-
DVC-P
- Measurement
-
Voltage
- Nominal Value
-
1000 V
- Measuring Range
-
1500 V
- Second. Nominal Signal
-
Voltage
- Second. Nominal Signal Value
- Instantaneous Unipolar 0-5V
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Unipolar
- Supply Voltage Range
- 5 - 5 V
- Accuracy
- 1.5 %
- Op. Temperature
- -40 °C / 85 °C
- Technology
-
Isolation Amplifier
- Mounting
-
PCB
- Applications
-
DrivesPower SuppliesRenewable EnergiesTractionWelding
