HLSR-SM
The perfect fit for your design. Really cost effective,5 ranges: 10 ARMS, 20 ARMS, 32 ARMS, 40 ARMS, 50 ARMS. Access to voltage reference. Low offset & gain drift,Short response time: 2.5 µs. Compact Unique design for all the models. Only 3.87 cm2 as surface occupied on the PCB,Really flat: 12 mm height only! Measuring range up to 2.5 x Ipn. High accuracy @ 25°C: +/- 1% of Ipn, @ 105°C: +/- 3.4% of Ipn. Creepage & clearance distances: 8 mm + CTI 600. Single supply +5 V or +3.3 V (2 different models). Through hole (-P) or surface (-SM) PCB mounting models. Voltage output (0.8 V @ Ipn). Fixed offset and gain. Operating temperature range: -40 to +105°C.

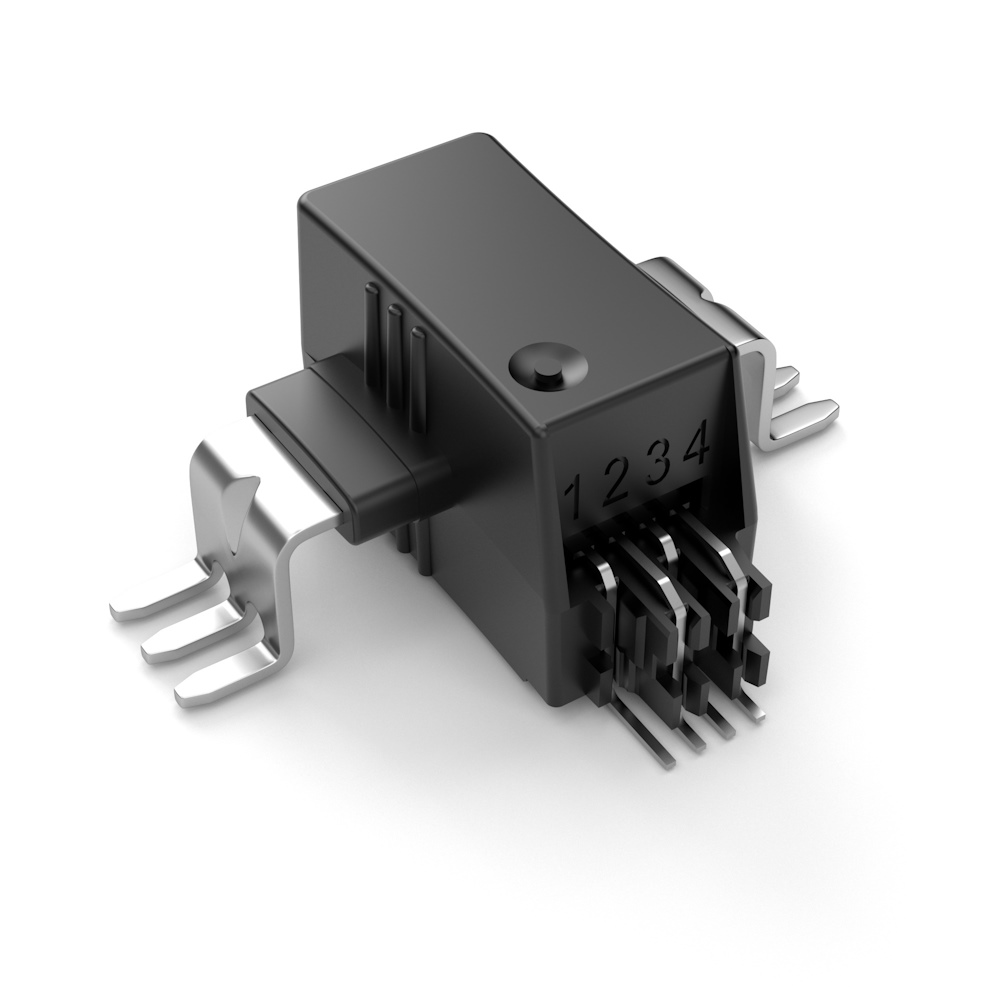

HLSR 50-SM/SP33
50 ARMS nominal. Surface (-SM) PCB mounting model. Single supply +3.3 V
- Series
-
HLSR-SM
- Measurement
-
Current
- Nominal Value
-
50 A
- Measuring Range
-
125 A
- Second. Nominal Signal
-
Voltage
- Second. Nominal Signal Value
- Instantaneous 1.65 +/- 0.46 V
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Unipolar
- Supply Voltage Range
- 3 - 3 V
- Accuracy
- 1 %
- Op. Temperature
- -40 °C / 105 °C
- Technology
-
Open loop Hall effect
- Mounting
-
PCB
- Applications
-
DrivesPower SuppliesRenewable EnergiesWelding
Relative information
Product of the same series
HLSR 50-SM
50 ARMS nominal. Surface (-SM) PCB mounting model.
HLSR 40-SM/SP33
40 ARMS nominal. Surface (-SM) PCB mounting model. Single supply +3.3 V
HLSR 32-SM/SP33
32 ARMS nominal. Surface (-SM) PCB mounting model. Single supply +3.3 V
HLSR 32-SM
32 ARMS nominal. Surface (-SM) PCB mounting model.
HLSR 20-SM/SP33
20 ARMS nominal. Surface (-SM) PCB mounting model. Single supply +3.3 V
HLSR 20-SM
20 ARMS nominal. Surface (-SM) PCB mounting model.
HLSR 10-SM/SP33
10 ARMS nominal. Surface (-SM) PCB mounting model. Single supply +3.3 V
HLSR 10-SM
10 ARMS nominal. Surface (-SM) PCB mounting model.
