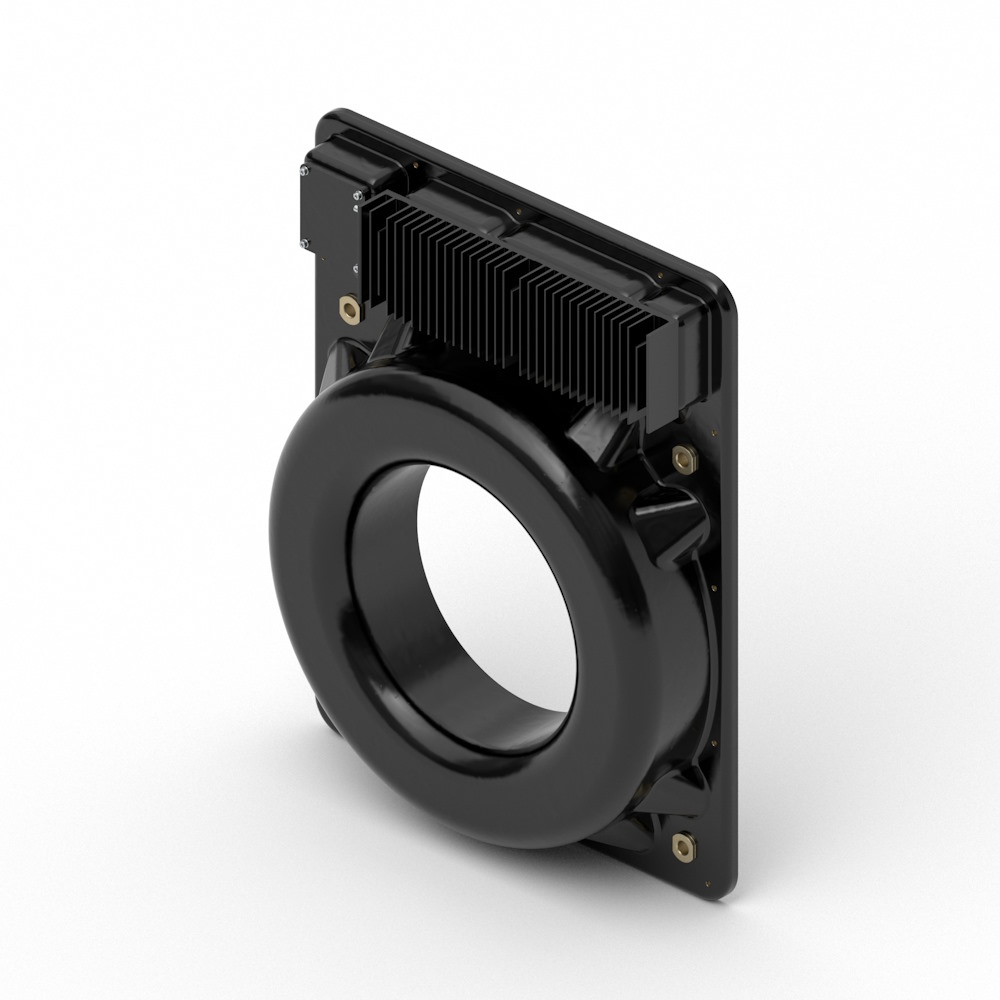

ITL4000
Non-invasive DC, AC, pulse highly accurate currents' measurements of 4000 ARMS with an aperture of 268 mm diameter with galvanic isolation. Closed loop Fluxgate technology. Measuring range: 3 x Ipn = 12000 ApK. Overall accuracy: +/- 0.06 % of Ipn at +25°C. High overall accuracy: +/- 0.08% of Ipn from -40 to +70°C. Power Supply: +/-24 V. Possibility to monitor +/- 10 A DC over a 4000 ARMS AC current with an uncertainty of +/- 1A (from -25 to +50°C). Instantaneous current output. Panel mounting.
Model details
ITL 4000-S
4000 ARMS nominal
- Series
-
ITL4000
- Measurement
-
Current
- Nominal Value
-
4000 A
- Measuring Range
-
12000 A
- Second. Nominal Signal
-
Current
- Second. Nominal Signal Value
- Instantaneous 1600 mA
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Bipolar
- Supply Voltage Range
- 24 - 24 V
- Accuracy
- 0.06 %
- Op. Temperature
- -40 °C / 70 °C
- Technology
-
Closed loop Fluxgate IT type
- Mounting
-
Panel
- Applications
-
High PrecisionSmart Grid
