ITN

Made for high accuracy on printed circuits ! DC, AC pulse currents' measurements of 12.5 ADC nominal with galvanic isolation. Excellent linearity: 4 ppm. High resolution. Initial offset: 500 ppm. Very low offset drift: 2 ppm/K. Overall accuracy @ Ipn @ +25°C: +/- 0.05 %. Wide frequency bandwidth up to 500 kHz (+/- 3 dB). Fluxgate technology. ,Power supply +/-15 V. Operating temperature range from +10 to +45°C. PCB mounting. Current output. Really quick response time (<250 µs).

Model details

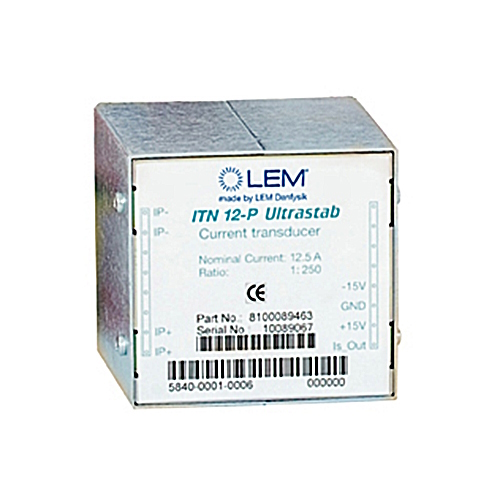

ITN 12-P ULTRASTAB

High accurate current transducer to be mounted on PCB. 12.5 ADC nominal.

Series
ITN
Measurement
Current
Nominal Value
12.5 A
Measuring Range
12.5 A
Second. Nominal Signal
Current
Second. Nominal Signal Value
Instantaneous 50 mA
Primary Signal
AC + DC
Supply Voltage
External DC Bipolar
Supply Voltage Range
15 - 15 V
Accuracy
0.0509 %
Op. Temperature
10 °C / 45 °C
Technology
Closed loop Fluxgate IT type
Mounting
PCB
Applications
High Precision
ITN 12-P ULTRASTAB
FRONT
BACK
LEFT
RIGHT
