LA255
Closed Loop Hall effect. DC, AC pulse currents' measurements of 250 ARMS nominal with galvanic isolation.To be panel mounted. Aperture 22.7 x 17.4 mm for the primary conductor crossing. Excellent accuracy, good response time, -10°C to + 85°C.
Model details

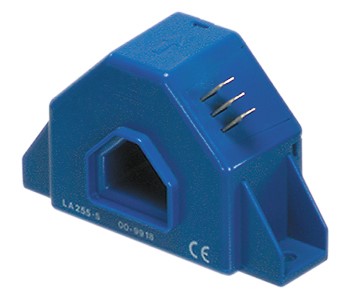

LA 255-S
250 ARMS nominal.
- Series
-
LA255
- Measurement
-
Current
- Nominal Value
-
250 A
- Measuring Range
-
500 A
- Second. Nominal Signal
-
Current
- Second. Nominal Signal Value
- Instantaneous 125 mA
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Bipolar
- Supply Voltage Range
- 12 - 18 V
- Accuracy
- 0.8 %
- Op. Temperature
- -10 °C / 85 °C
- Technology
-
Closed loop Hall effect
- Mounting
-
Panel
- Applications
-
DrivesPower SuppliesRenewable EnergiesWelding
