IN-->400

Ultra Accuracy - Low noise over wide operating temperature range. Fluxgate technology reinvented (LEM patent). DC, AC pulse currents' measurements of 500, 1000 and 2000 A nominal with galvanic isolation. Excellent linearity over temperature range. Very low offset over temperature range. Low noise level. One compact package. Electrostatic shield between primary and secondary circuit. Power supply +/- 15 V. -40 to +85°C. D-Sub 9 male interface output. Flat or vertical panel mounting.

Model details

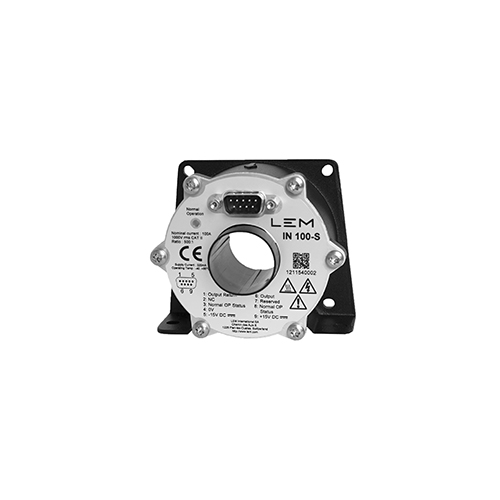

IN 100-S

100A nominal, 0.8 ppm linearity and max 15 ppm offset over the temperature range, bandwidth from DC to 2.0 MHz, really good immunity from external fields, low noise 50 ppm peak-peak

Series
IN-->400
Measurement
Ток
Nominal Value
100 A
Measuring Range
150 A
Second. Nominal Signal
Ток
Second. Nominal Signal Value
Мгновенное значение 0.2 mA
Primary Signal
Переменный + постоянный ток
Supply Voltage
Внешнее двухполярное постоянного тока
Supply Voltage Range
15 - 15 V
Accuracy
0.0018 %
Op. Temperature
-40 °C / 85 °C
Технология
Компенсационные с технологией Fluxgate, тип IN
Mounting
На панель
Применения
Высокая точность
FRONT
BACK
LEFT
RIGHT
Скачать

Relative information

Заказ

Контактная информация

Select any filter and click on Apply to see results
Серии

Изделия этой серии

IN 400-S

400A nominal, 0.3 ppm linearity and max 8 ppm offset over the temperature range, bandwidth from DC to 0.8 MHz, really good immunity from external fields, low noise 38 ppm peak-peak

IN 200-S

200A nominal, 0.6 ppm linearity and max 10 ppm offset over the temperature range, bandwidth from DC to 1.1 MHz, really good immunity from external fields, low noise 50 ppm peak-peak
