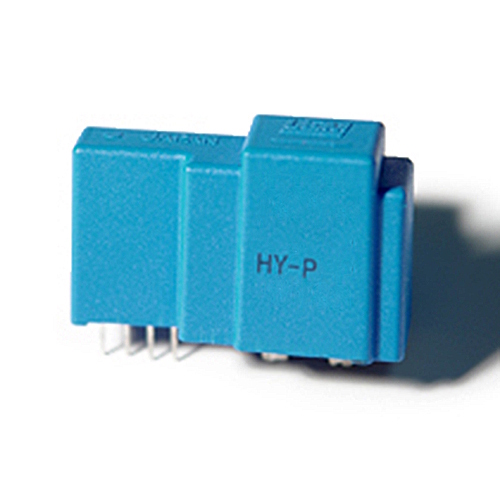

HY Series
DC, AC and pulse small currents' measurements from 5 to 50ARMS nominal with galvanic isolation
HY – Current sensors for the industrial sector
The HY Series is designed for the electronic measurement of DC, AC, and pulsed currents, providing galvanic isolation between the primary and secondary circuits. These current transducers offer a variety of measurement ranges within the same housing, from ±15 A to ±150 A.
HY sensors come with several competitive advantages, including a compact size, dual supply voltage of ±12V to ±15V, and voltage output. They can measure up to three times the nominal current (3 x Ipn) and are intended for PCB mounting.
Utilizing open-loop Hall effect technology, HY transducers are ideal for industrial applications.
HY – Features and benefits
Main characteristics
- Hall effect measuring principle
- Galvanic separation between primary and secondary circuit
- Insulation voltage 2500 V~
- Compact design for PCB mounting
- Low power consumption
- Extended measuring range (3 × IP N)
- Insulating plastic case recognized according to UL 94-V0
Benefits
- Easy mounting
- Small size and space saving
- Only one design for wide current ratings range
- High immunity to external interference
Typical applications
In the industrial sector, HY current sensors are utilized in a wide range of applications. Key examples include:
- Static converters for DC motor drives
- Switched Mode Power Supplies (SMPS)
- AC variable speed drives
- Uninterruptible Power Supplies (UPS)
- Battery supplied application
- General purpose inverters
LEM HY – Download & Technical Characteristic
Product | Order | Document | Primary current | Supply range | Accuracy | Bandwidth | Sensitivity | Op. | Mounting |
|---|---|---|---|---|---|---|---|---|---|
| HY 5-P | Datasheet | 15 A | 12 to 15 | 1 % | 50 kHz | 400 mV/A | -10 to 80 | PCB | |
| HY 10-P | Datasheet | 30 A | 12 to 15 | 1 % | 50 kHz | 320 mV/A | -10 to 80 | PCB | |
| HY 12-P | Datasheet | 37.5 A | 12 to 15 | 1 % | 50 kHz | 266.667 mV/A | -10 to 80 | PCB | |
| HY 15-P | Datasheet | 45 A | 12 to 15 | 1 % | 50 kHz | 33.333 mV/A | -10 to 80 | PCB | |
| HY 15-P/SP1 |
| Datasheet | 45 A | 5 to 5 | 2 % | 50 kHz | 200 mV/A | -10 to 75 | PCB |
| HY 20-P | Datasheet | 60 A | 12 to 15 | 1 % | 50 kHz | 160 mV/A | -10 to 80 | PCB | |
| HY 25-P | Datasheet | 75 A | 12 to 15 | 1 % | 50 kHz | 20 mV/A | -10 to 80 | PCB | |
| HY 50-P | Datasheet | 150 A | 15 to 15 | 1 % | 50 kHz | 80 mV/A | -10 to 80 | PCB | |
| HY 50-P/SP1 |
| Datasheet | 150 A | 5 to 5 | 2 % | 50 kHz | 10 mV/A | -10 to 80 | PCB |
| HY 50-P/SP21 | Datasheet | 150 A | 15 to 15 | 1 % | 50 kHz | 80 mV/A | -10 to 80 | PCB |
