AK
AC Current range from 2A to 200A selectable by a jumper,RMS version. Several types of output: 4-20mA, 0-5V or 0-10V,Bandwidth 50/60Hz to 400Hz. Solid or split core
Model details

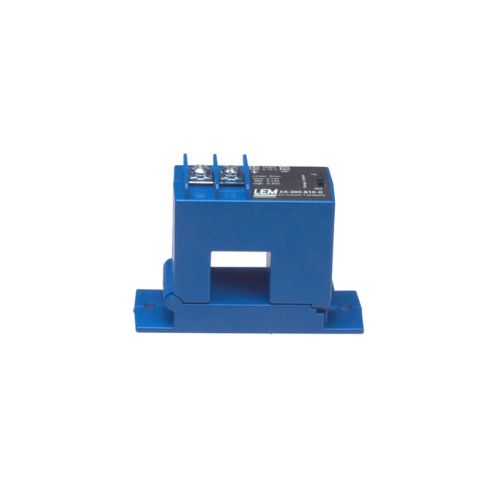

AK 50 B10
AC Current range 10, 20 & 50A selectable by a jumper, RMS version, Voltage output: 0-10V DC,,Bandwidth 50/60Hz, Split core
- Series
-
AK
- Measurement
-
Current
- Nominal Value
-
10 A, 20 A, 50 A
- Measuring Range
-
50 A
- Second. Nominal Signal
-
Voltage
- Second. Nominal Signal Value
- DC RMS 0-10V
- Primary Signal
-
AC
- Supply Voltage
-
Self Powered
- Accuracy
- 1 %
- Op. Temperature
- -20 °C / 50 °C
- Technology
-
Current Transformer
- Mounting
-
PanelDIN rail
- Applications
-
AutomationSmart Grid
FRONT
BACK
LEFT
RIGHT
