DVC-B

LEM makes the voltage measurement more compact, 131.6 cm3 total volume, Fully-isolated nominal measurement of 1000 V DC, AC or pulsed, Compact, light (57 g) and robust package, Panel mounting, Rail DIN mounting adaptor as an option, 4.2kV as insulation test voltage, Meets latest industrial standards as well as IRIS requirements for rail traction applications

Model details

DVC 1000-B

1000 VRMS nominal, Overall accuracy: +/- 1.7 % from -40°C to +85°C, 12 us response time, +/- 10 V instantaneous voltage output @ +/- 1500 V peak, +/- 15 to +/- 24 volt power supply

Series
DVC-B
Measurement
Voltage
Nominal Value
1000 V
Measuring Range
1500 V
Second. Nominal Signal
Voltage
Second. Nominal Signal Value
Instantaneous 6.66 V
Primary Signal
AC + DC
Supply Voltage
External DC Bipolar
Supply Voltage Range
15 - 24 V
Accuracy
1.7 %
Op. Temperature
-40 °C / 85 °C
Technology
Isolation Amplifier
Mounting
DIN rail
Panel
Applications
Drives
Power Supplies
Renewable Energies
Traction
Welding

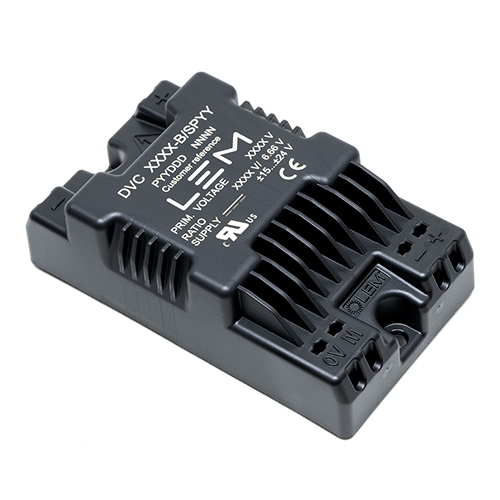

DVC 1000-B
FRONT
BACK
LEFT
RIGHT
