DVM-DT
Voltage transducers for Industrial and Traction - for high and medium unipolar voltage measurements from 600 to 4200 VRMS with an unique compact design (30% smaller, 25% less volume) and excellent overall accuracy. Unipolar power supply, Voltage output + additional detection output (voltage threshold output).
Model details

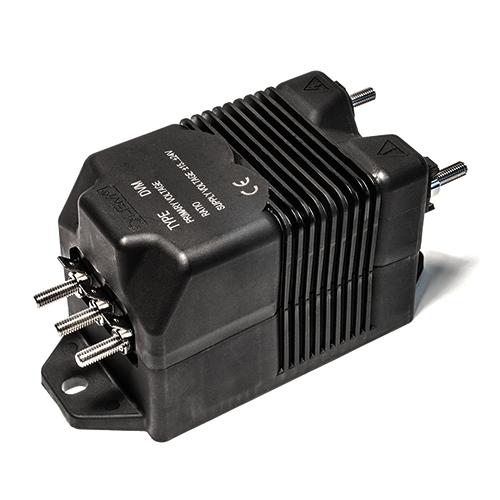

DVM 4000-DT/SP1
Unipolar and insulated measurement up to 4000 V, 6.66 V voltage output, Unipolar power supply, Additional voltage threshold output, Input connections with M5 threaded studs and,output connections on burndy connector.
- Series
-
DVM-DT
- Measurement
-
Voltage
- Nominal Value
-
4000 V
- Measuring Range
-
6000 V
- Second. Nominal Signal
-
Voltage
- Second. Nominal Signal Value
- Instantaneous 6.6666 V
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Unipolar
- Supply Voltage Range
- 24 - 24 V
- Accuracy
- 0.5 %
- Op. Temperature
- -40 °C / 70 °C
- Technology
-
Insulation Digital Technology
- Mounting
-
Panel
- Applications
-
DrivesPower SuppliesRenewable EnergiesTractionWelding
