LF306

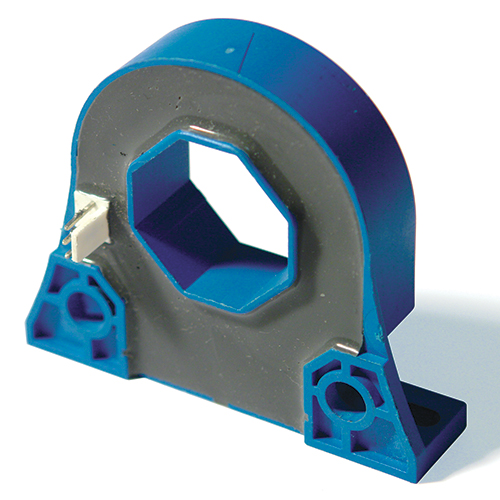

Closed Loop Hall effect. DC, AC pulse currents' measurements of 300 ARMS nominal with galvanic isolation. Compact and ultra flat design. To be panel mounted in various ways. Aperture 25.5 x 25.5 mm for the primary conductor crossing. Excellent accuracy, good response time, Current output, -25°C to + 70°C. Dual supply +/- 12 to +/- 15 V.
Model details
LF 306-S/SP10
300 ARMS nominal. Secondary connections to be soldered on PCB
- Series
-
LF306
- Measurement
-
Current
- Nominal Value
-
300 A
- Measuring Range
-
500 A
- Second. Nominal Signal
-
Current
- Second. Nominal Signal Value
- Instantaneous 150 mA
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Bipolar
- Supply Voltage Range
- 12 - 15 V
- Accuracy
- 0.4 %
- Op. Temperature
- -25 °C / 70 °C
- Technology
-
Closed loop Hall effect
- Mounting
-
PanelPCB
- Applications
-
DrivesPower SuppliesRenewable EnergiesWelding
FRONT
BACK
LEFT
RIGHT
Download
Relative information
Series
Product of the same series
LF 306-S
300 ARMS nominal. Ultra flat design.
