ИННОВАЦИИ

Начиная с 1972 года, LEM старается предвосхитить запросы потребителей, вкладывая значительные средства в научные исследования и разработки. Эти инвестиции позволяют LEM не только создавать новую продукцию, но и улучшать параметры, эффективность и габариты существующей продукции путем введения новых характеристик и функций, создающих конкурентное преимущество вместе с добавленной стоимостью, в конечном применении потребителя. LEM убежден, что тесные связи с потребителями являются ключевым моментом для создания и совершенствования новой продукции на перспективу. В обширном портфолио продукции компании LEM используется 7 ключевых технологий, для удовлетворения потребности рынка. Эти технологии позволили создать широкий ассортимент гальванически изолированных датчиков тока и напряжения, ставших промышленным стандартом в сфере электрических измерений.
Для удовлетворения различных требований рынка к электрическим и механическим параметрам, LEM разработал ряд технологий, включающих:

• Технологию прямого усиления на эффекте Холла
• Технологию компенсационных датчиков на эффекте Холла
• Феррозондовую (Fluxgate) технологию, включающую варианты “IT-типа“, “C-типа“, “CTSR типа“, “CAS-CASR-CKSR типа” и “ITC типа”
• Технологию цифровой изоляции, включающую “DVL и DVM и DV типа”
• Технологии без использования магнитного сердечника включая катушку Роговского, PRiME™ и Трансформаторы тока

Хотя для большинства применений наилучшим решением будет стандартный датчик, выполненный по одной из вышеперечисленных технологий, LEM готов разрабатывать специальные решения, полностью удовлетворяющие определенным требованиям заказчиков.


ТЕХНОЛОГИИ

Closed Loop Current Transducers
Closed Loop Current Transducers
Closed Loop Fluxgate C type
Closed Loop Fluxgate C type

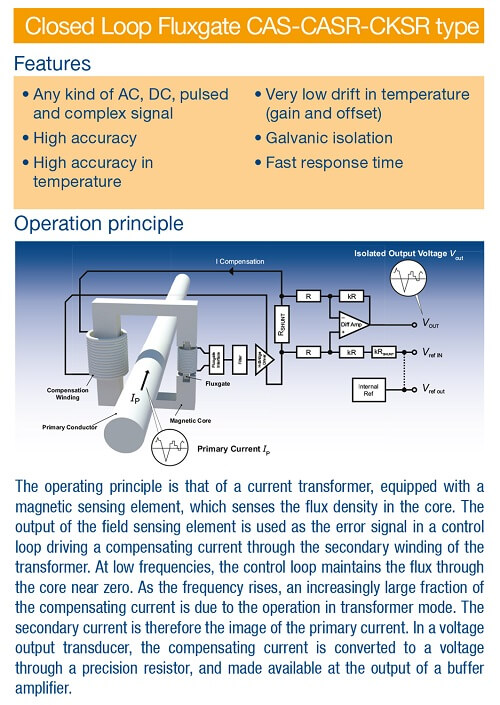

Closed Loop Fluxgate CAS-CASR-CKSR Type
Closed Loop Fluxgate CAS-CASR-CKSR Type

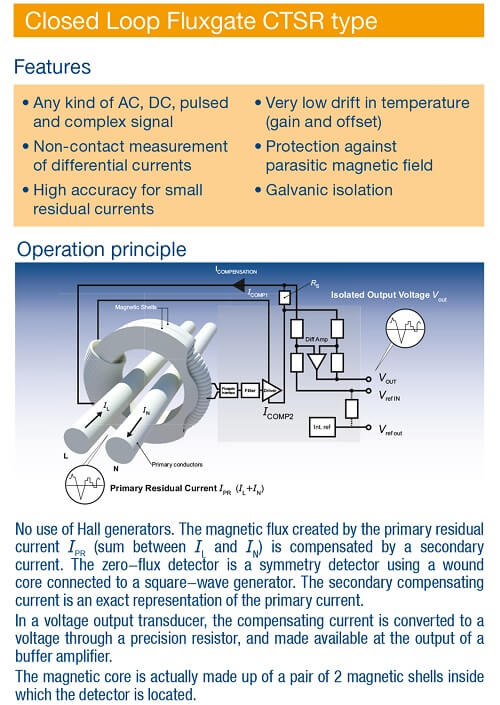

Closed Loop Fluxgate CTSR type
Closed loop flux gate CTSR type
Closed Loop Fluxgate IT type
Closed Loop Fluxgate IT type
Closed Loop Fluxgate ITC type
Closed Loop Fluxgate ITC type
Closed Loop Voltage Transducers
Closed Loop Voltage Transducers

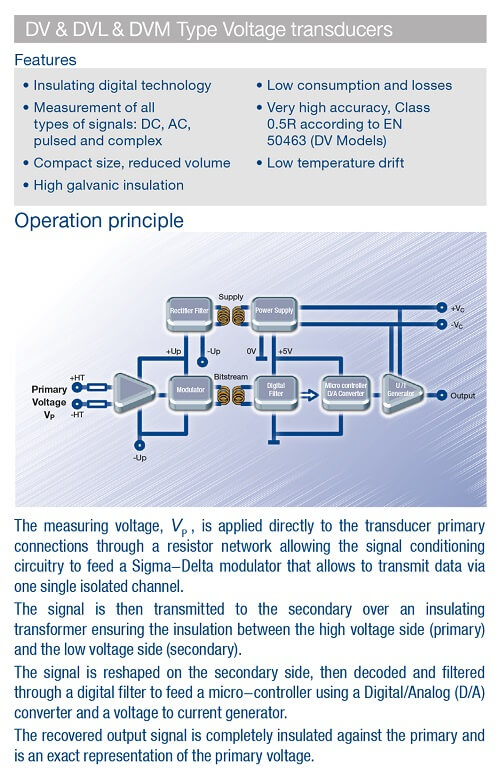

DV & DVL & DVM Type Voltage Transducers
DV & DVL & DVM Type Voltage Transducers

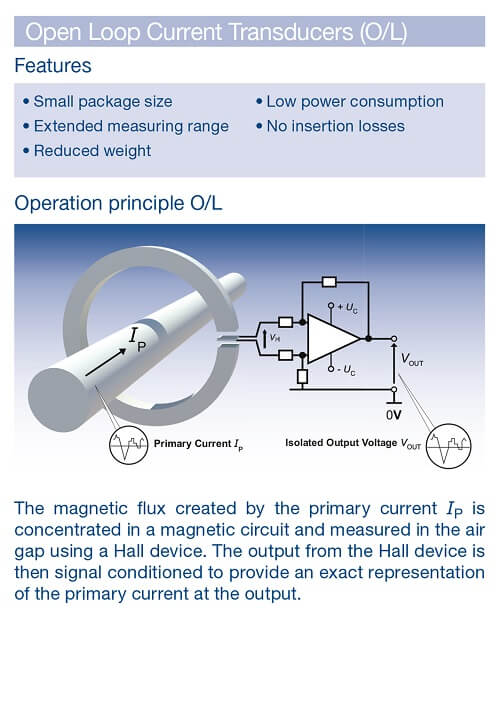

Open-Loop Current Transducers
Open-Loop Current Transducers
PRiME Current Transducers
PRiME Current Transducers

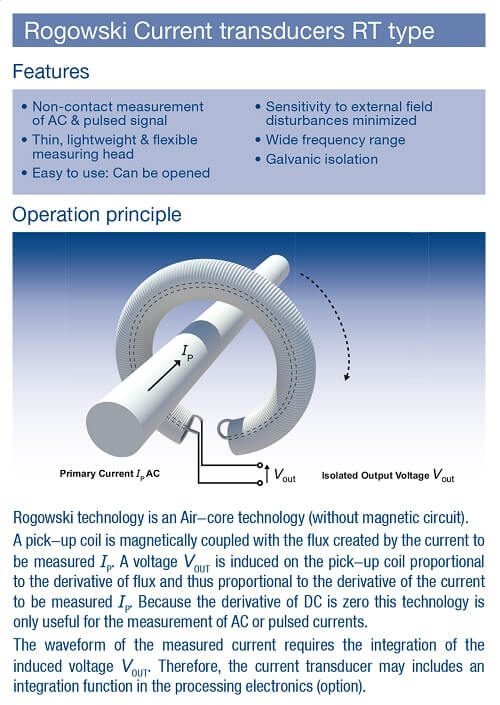

Rogowski Current Transducers
Rogowski Current Transducers

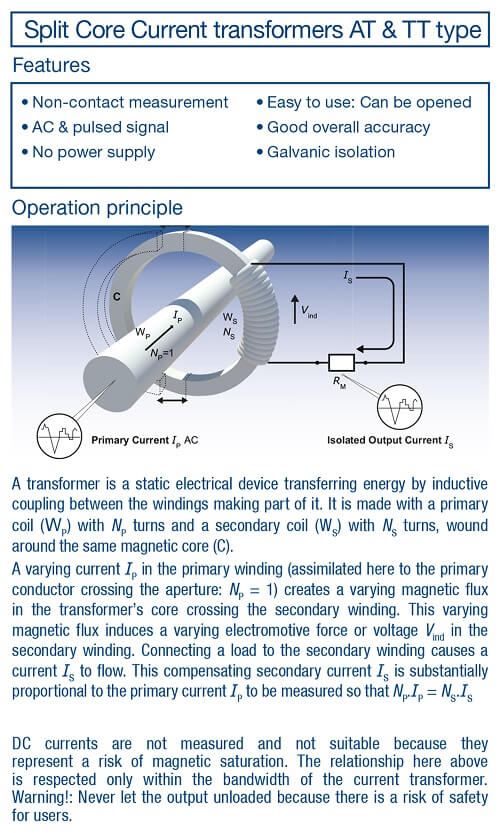

Split Core Current transformers AT & TT Type
Split Core Current transformers AT & TT Type

Current Transducers

LEM is a leading supplier of current transducers (also called current sensors), offering a wide range of galvanically isolated transducers that have become industry standards. The broad range of sizes, measuring range from tiny currents to 24kA and ease of use make them ideal solutions for a broad range of applications.

LEM offers a variety of current sensor technologies:

  • Hall Effect
  • Fluxgate
  • Air-Core (Coreless)


Hall Effect Current Transducers

LEM Hall Effect current sensors are available in open-loop, closed-loop and Eta configurations. Open-loop Hall Effect sensors are highly cost effective, as well as being small and consuming minimal power. Closed-loop sensors offer higher accuracy and enhanced speed to enable currents with a wider range of frequencies to be measured.

Hall Effect Eta transducers are similar in construction to closed loop transducers , with the same magnetic circuit geometry, a Hall generator and secondary winding. A Hall Effect Eta transducer is a mix of open loop and current transformer technologies operating as an open loop transducer at low frequencies (up to 2…10 kHz depending on the specific transducer design), and as a current transformer at higher frequencies. Both the Hall Effect and transformer signals are electronically added to form a common output signal.

Hall Effect Current Transducers


Fluxgate Current Transducers

A “standard” closed-loop Fluxgate sensor uses a secondary winding to counteract the field generated in a magnetic circuit by the primary conductor. Although similar in operation to a closed-loop Hall Effect sensor, the Fluxgate uses a saturable inductor using a small thin magnetic core to sense the airgap field, rather than a Hall Effect transducer.

Fluxgate Current Transducers

Other Fluxgate transducers built on the technology to deliver specific benefits. They are:

  • Low-Frequency, where the field sensing element is wrapped around the toroidal core, rather than using a gap to make more cost-effective sensors
  • C-Type, built like the low-frequency Fluxgate sensor, but with a separate core to improve high frequency performance
  • IT-type that uses two toroidal cores with opposing excitation coils.


Air-Core Current Transducers

The material used to create the core can limit the performance of the transducer due to characteristics such as remanence, hysteresis, non-linearity, losses and saturation. So the design of an air-core or coreless transducer is often considered.

Examples of air-core current sensors include Rogowski coil transducers.

More information:

For more information about different current transducer technologies, download Isolated Current and Voltage Transducers: Characteristics, Applications, Calculations.
To find a current transducer for your application, visit the LEM Current Transducer Selector Tool.


Voltage Transducers

LEM offers a wide range of voltage transducers (also called voltage sensors) to allow isolated measurement of voltage. The broad range of products measures voltage from 10 V to 6.4 kV, with a variety of technologies including Hall Effect,Fluxgate and insulating digital.
