HX Series – Small Size Hall Effect Current Sensors
The HX Series consists of compact Hall‑effect current sensors designed for the electronic measurement of DC, AC, and pulsed small currents ranging from 2 to 50 A, with full galvanic isolation between primary and secondary circuits.
Optimized for industrial applications, HX sensors combine high performance with a small mechanical footprint and competitive cost.

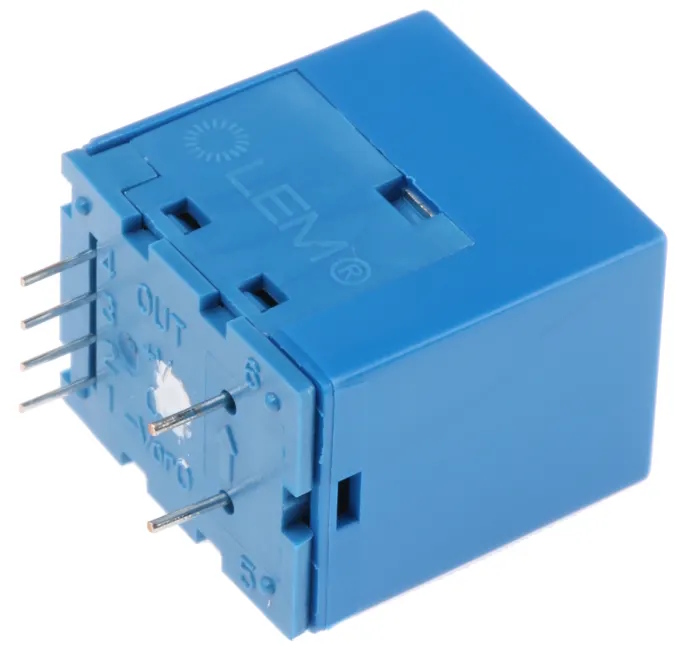

Designed for PCB mounting, HX current sensors require only 2.93 cm² of board space and weigh approximately 8 g, making them well suited for space‑constrained designs. They provide a voltage output with a measuring capability extending up to 3 × Ipn.
The HX Series is available in multiple models and versions, supporting both dual supply (±12 to ±15 V) and single supply (+12 to +15 V) configurations.
Within the range, HX‑P and HX‑NP variants are offered, with the HX‑NP version featuring two insulated primary windings for specific integration needs.
HX – Features & Benefits
Main characteristics
- Hall effect measuring principle
- Low power consumption
- Galvanic separation between primary and secondary circuit
- Extended measuring range (3 × IPN)
- Insulating plastic case recognized according to UL 94-V0
- Insulation voltage 3000 V
- Power supply from ±12 V to ±15 V
Additionally, HX-NP parts feature a distinctive characteristic compared to HX-P, as they are designed with 2 insulated primary windings.
Benefits
- Low insertion losses
- Easy mount with automatic handling system
- Small size and space saving
- Only one design for wide current ratings range
- High immunity to external interference.
Typical applications
HX products are specifically designed for industrial use. These current sensors are employed across numerous applications, including:
- AC variable speed drives and servo motor drives
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies (SMPS)
- Electrical appliances
LEM HX – Download & Technical Characteristic
| Product | Check stock | Document | Nominal value | Supply Voltage range | Op. Temperature |
|---|---|---|---|---|---|
| HX 02-P | Datasheet | 2 A | 15 to 15 | -25 to 85°C | |
| HX 03-P | Datasheet | 3 A | 15 to 15 | -25 to 85°C | |
| HX 03-P/SP2 | Datasheet | 3 A | 12 to 15 | -25 to 85°C | |
| HX 05-NP | Datasheet | 5 A | 15 to 15 | -25 to 85°C | |
| HX 05-P | Datasheet | 5 A | 15 to 15 | -25 to 85°C | |
| HX 05-P/SP2 | Datasheet | 5 A | 12 to 15 | -25 to 85°C | |
| HX 06-P | Datasheet | 6 A | 15 to 15 | -25 to 85°C | |
| HX 10-NP | Datasheet | 10 A | 15 to 15 | -25 to 85°C | |
| HX 10-P | Datasheet | 10 A | 15 to 15 | -25 to 85°C | |
| HX 10-P/SP2 | Datasheet | 10 A | 12 to 15 | -25 to 85°C | |
| HX 15-P | Datasheet | 15 A | 15 to 15 | -25 to 85°C | |
| HX 15-P/SP2 | Datasheet | 15 A | 12 to 15 | -25 to 85°C | |
| HX 20-P | Datasheet | 20 A | 15 to 15 | -25 to 85°C | |
| HX 25-P | Datasheet | 25 A | 15 to 15 | -25 to 85°C | |
| HX 50-P | Datasheet | 50 A | 15 to 15 | -25 to 85°C | |
| HX 50-P/SP2 | Datasheet | 50 A | 12 to 15 | -25 to 85°C |
HX Sensors – ASK FOR SAMPLES / QUOTATIONS
Looking to receive samples or a quotation? Please click on the contact button below and provide us with the information you need on this product series. Our sales team will get back to you shortly.
