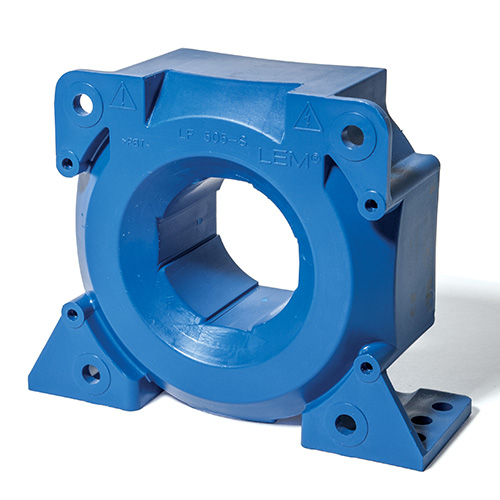

LF505

Closed Loop Hall effect. DC, AC pulse currents' measurements of 500 ARMS nominal with galvanic isolation. Compact design. To be panel mounted in various ways. Aperture 30.2 mm diameter for the primary conductor crossing. Excellent accuracy, good response time, Current output, -40°C to + 70°C. Dual supply +/- 15 to +/- 24V.

Model details

LF 505-S/SP22

High mounting versatility, 500 ARMS nominal. Turns ratio 1/3500, Output on M4 threaded studs, For Traction

Series
LF505
Measurement
Current
Nominal Value
500 A
Measuring Range
1200 A
Second. Nominal Signal
Current
Second. Nominal Signal Value
Instantaneous 143 mA
Primary Signal
AC + DC
Supply Voltage
External DC Bipolar
Supply Voltage Range
15 - 24 V
Accuracy
0.6 %
Op. Temperature
-40 °C / 70 °C
Technology
Closed loop Hall effect
Mounting
Panel
Applications
Traction
 LF 505-S/SP22  LF505
