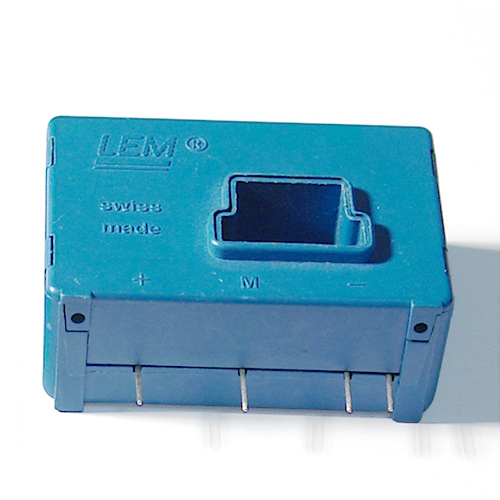

The LA 125 and LA 200 product families are closed loop hall effect current sensors designed for the DC, AC, pulse current measurement of respectively 125 and 200 Arms nominal with galvanic isolation.
LA 125 and LA 200 current sensors are to be mounted on printed circuit boards (PCB).
Their primary conductor crossing 11 x 13 mm aperture is designed for the plug crossing. These components provide excellent accuracy and good response time in industrial applications.
- Closed loop (compensated) current transducer using the Hall effect
- Insulating plastic case recognized according to UL 94-V0
- Excellent accuracy
- Very good linearity
- Low temperature drift
- Optimized response time
- Wide frequency bandwidth
- No insertion losses
- High immunity to external interference
- Current overload capability
LA 125 and LA 200 current sensors are designed for industrial applications:
|Product||Document||Primary nominal RMS voltage||Supply Voltage range||Op. Temperature|
|LA 125-P||125 A||12 to 15||-40 to 85°C|
|LA 125-P/SP1||125 A||12 to 15||-25 to 85 °C|
|LA 125-P/SP3||Datasheet||125 A||12 to 15||-25 to 85 °C|
|LA 125-P/SP4||Datasheet||125 A||12 to 15||-40 to 85 °C|
|200 A||12 to 15||-40 to 85°C|
|LA 200-P/SP4||Datasheet||200 A||12 to 15||-25 to 85 °C|
